DL4 Longhole Drill

DL4 Longhole Drill

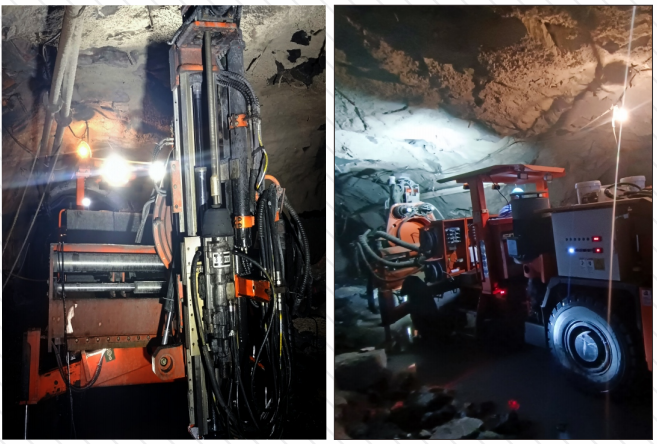

DL4 Hydraulic Longhole Drill, specially developed for medium and deep hole drilling in medium and large tunnels of 3.8m and above. The propelling beam can be pitched and rotated, and the design of swing arm and sliding type boom is suitable. Deep-hole blasting various rock drilling operations with hole-laying methods.

Parameters of DL4 Longhole Drill:
Rock Drill
Model1838ME2560
Shank adapterT38/T45 T45/T51
Hole diameter mm 64-76/76-89 76-1115
Max impact power Kw 18 25
Impact rate Hz 60 44
System pressure bar 230 230
Rotation motors Separate rotation
Rotation speed rpm 0-215 0-130
Max rotary toque Nm 1070 1550
Lub. air consumption L/s 5-7 5
Weight Kg 175 195
Noise dB(A) <106 <106
Drilling Feed and rod bank
Model TF18-5A TF18-6A
Length mm 3446 3751
Drilling rod length mm 1525 1830
Propulsion KN 15 15
Rod storage capacity (optional) 21+1 21+1
Drilling depth mm 34.5 41.5
Drilling hole diameter mm 64-89 64-89

Boom and positioning

Feed extension 1200mm

Roll over angle 360°

Boom up/down 20/-65°

Slide stroke 1500mm

Rotation boom parallel movement stroke 1500mm

Propelling beam top rear tip stroke 2000 mm

Propelling beam top front tip stroke 1150mm

Propelling beam positioning: digital display screen

Air system

Compressor type/model………………helical-lobe/ZLS-07A-8-CA55

Motor power…………………………5.5Kw

Max. output……………………11.6L/S

Working pressure…………………8 Bar

Water system

Pump type/model………Centrifugal/CDMF5-20

Motor power…………………………3Kw

Max. injection……………………80 L/min

Max working pressure ……………25bar

Control system

Electric remote control system

Function…………Anti - jamming and anti - air drilling etc

Electrical system

Total installed power…………………83.5KW

Main motor power……………………75Kw

Voltage……………………………… 380V

Frequency……………………………50Hz

Starting method.……………………Star delta

Thermal overload protection for electric motors

Impact timer

Digital voltage/current meter

Phase sequence indicator

Ground fault indicator

Battery charger……………………600W

Transformer………………………1500VA

Electrical cable volume……………100m

Hydraulic system

Hydraulic pump: For impact, positioning and propulsion

Hydraulic pump, For rotary

Oil pump unloading start

Max system pressure…………………………230 bar

Volume of Hydraulic oil tank……………………165L

Low oil level indicator with shutdown function

Oil tank with oil temperature gauge, temperature switch

Filtration accuracy………………10µm

Oil filter indicator

Stainless steel water cooler for hydraulic oil

Manual oil injection pump

Mineral-based hydraulic oil

Carrier

Engine………………………………YCD4T23T8-80

Rated power……………………………60KW

Torque…………………………………320Nm

Fixed seat

Articulated steering angle……………………+/-38°

Four-wheel drive

Hydrostatic Power Steering System

Hydraulic mechanical transmission

Front Axle……………………………………Wet

Rear Axle……………………………………Wet

Tyre………………………………………10.00-15

Departure angle…………………………………19°

Approach angle…………………………………26°

Hydraulic front Outrigger……………2pcs extensible

Hydraulic rear Outrigger…………………2 pcs

Parking braking

Emergency and parking brake

Diesel tank volume……………………………60L

Electrical voltage…………………………24V

Battery…………………………………2×120Ah

Driving lights ………………………………8×LED

Brake light

Centralized Lubrication System for chasis

Catalytic converter/silencer

Dry powder fire extinguisher

Pneumatic grease gun

Machine wash water gun

Gradienter

Max. Working gradient………………………14°

Traveling speed………………………………14Km/h

Horns, warning lights and reversing alarms

Optional configuration

Rock drill: 2238

Ansul Automatic fire extinguishing system

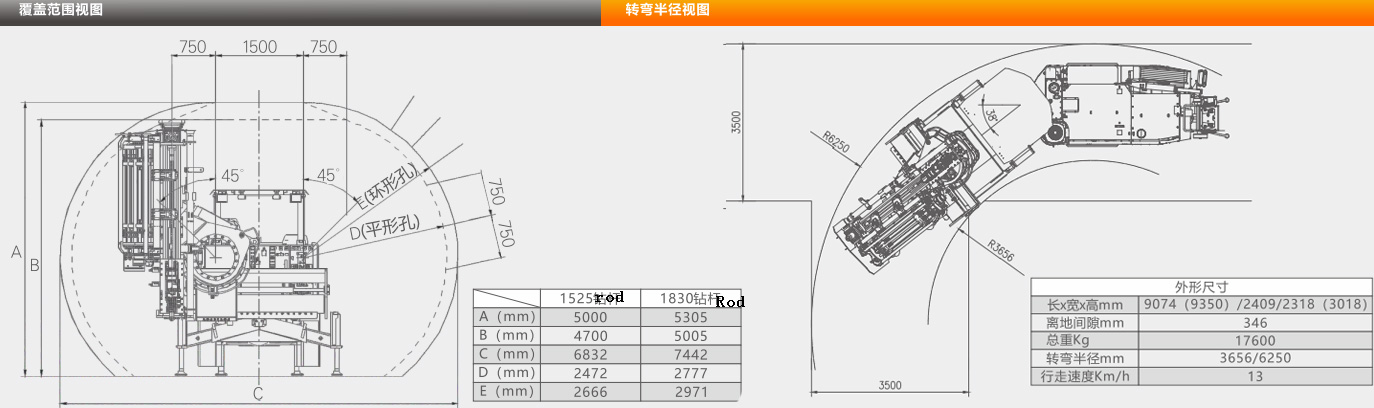

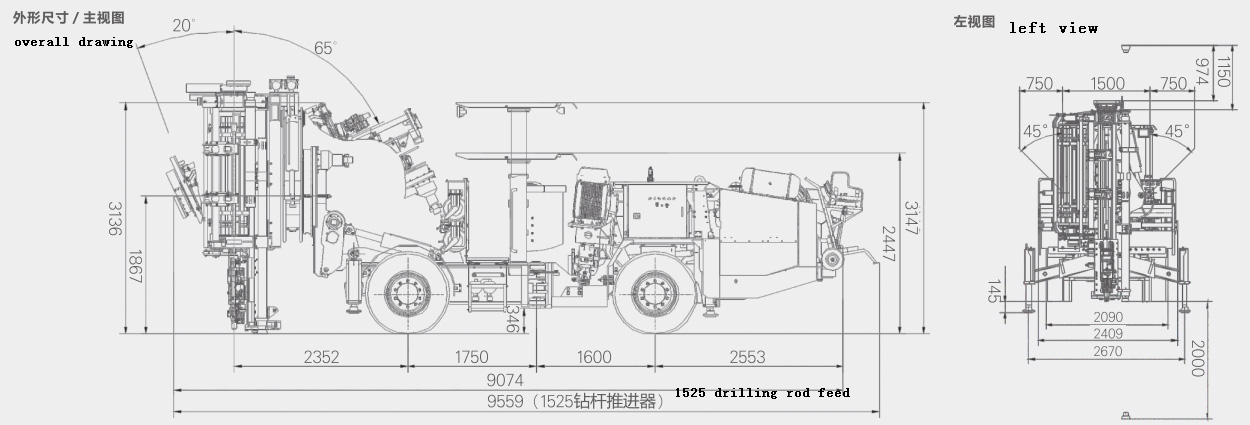

Over all dimension
Lx Wx H mm 9074 (9350) /2409/2318 (3018)
Ground clearance mm 346
Weight Kg 17600
Turning radius mm 3656/6250
Traveling speed Km/h 13
Comprehensive configuration:

1. Adaptation: 3.8・5.3m deep hole operation in tunnel (with 1220 poles) (1525/1830mm poles can be selected according to the height of the tunnel).

2. It can meet the requirements of 41m, Φ 76-89mm deep hole operation, and the optional rod bank can automatically connect and unload rods (capacity 21+1 rods).

3. Mobile remote control console and mobile working lighting.

4. With angle display.

5. Diesel engine self-propelled, electric operation, with cable drum 100m.

6. Four-wheel drive, chai connection chassis.

7. Equipped with 25KW/18KW rock drill, the comprehensive rock drilling speed is 0.6-0.8m/min°.

8. The propelling beam is equipped with upper and lower tops to fix the angle of the propelling beam, and the parallel sliding table and rocker arm can meet the parallel operation of 3m. A cleaning system is provided to clean up the propelling beam to drill the magma upward.

Rod bank, drilling system:

♦ Aluminum alloy propelling feed can be turned over 360°, and the rock drill is steadily drilled through multi-stage oil cylinders.

♦ With rod bank: automatic rod extension and unloading.

♦ Pole bank capacity: 21+1, realize automatic rod connection and unloading, easy drilling operation.

♦ Drill rod can be 1.5m (33m), 1.8m (41m).

♦ With upper and lower center: fixed propelling beam.

♦ Upper center: 1150mm, lower center: 2000mm.

♦ With diversion groove: reduce the wear of magma to the propelling beam.

♦ Advance compensation 1200mm.
