Drilling Jumbo
Home » Products » Drilling Jumbo

Founded in 1992, Jiangxi Siton Machinery Manufacturing Co., Ltd., specializes in research, development, production and sales of tunneling and mining machinery. Drilling Jumbo / Mining Boomer is our main product which obtained ISO9001:2000 quality standard. And our drilling jumbos are used to excavate tunnel in mining, metallurgy, water and electricity, rail industry and other works.

Face drilling rigs, commonly called "drill jumbo’s", are large, single or multi-boom machines used in underground hard-rock mines. Booms typically have six control axes to position and orient the boom tip at the rock face, to drill long holes for blasting which follow the trajectory of the ore body. Control is via a series of single axis levers and two axis joysticks, along with various push-buttons. The face drilling rig can be matched tunnel excavator and backhoe loader.

As the professional manufacturer of drilling jumo / face drilling rigs, Siton produce and sell single and double booms drilling rigs. Recently, we has focused on developing a versatile, reliable and safe drill rig for mining conditions. The rig is built upon a modern design with many common components with the successful boomer face drilling rig.

We have many different types and models of drilling jumbo, below is the catalogue of our drilling jumbos.

You can buy various high quality drilling jumbo from Siton.

If you need more information, please click our website and call or email us, we will respond you as soon as possible.

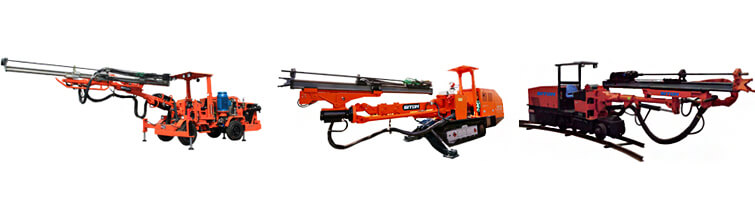

Tunnel Drilling Jumbo / Mining Boomer

1, Wheel Drilling Jumbo

Single Boom Jumbo

Double Boom Jumbo

The wheel type hydraulic drilling jumbo / minging boomer is mainly used to drill blastholes for tunnelling constructions in coal mine, non-ferrous metal mine, hydro-power station, railroad, highway engineering etc. Advanced hydraulic rock drill system, anti-jamming mechanism make the jumbo drilling on face, slope, roof, side wall and floor in underground mine or tunnels. This small compact jumbo has a low center of gravity, great mobility, remarkable stability and strong grade ability thus can be improve working environment and get efficiency, quality development.

The boomer is designed with two drilling booms, advanced hydraulic rock drill system, self-return and anti-jamming mechanism for making it has rapid drilling speed and high efficiency. Flexible mechanism can make the jumbo drilling on face, slope, roof, side wall and floor in underground mine or tunnels, and it also can drill anchor holes upward. With modular designed, this small compact jumbo has a low center of gravity, great mobility, remarkable stability and strong climb capability thus can improve working environment and get efficiency, quality development.

Operating Principle:

1, Hydraulic pilot control system, anti-interference ability, good stability and high quality. Equipped with a powerful engine and exhaust gas purification device to meet the Euro III emission standards.

2, Dual-axis drive, rear-wheel hydraulic steering walking system, mobility and high maneuverability. Working Boom dynamic load good stability, operational flexibility, range construction, no construction blind spots, enabling fast, accurate positioning.

3, Advanced drilling control system with automatic anti-jamming protection function, high efficiency. The overall lift the cab broad view of the operation.

4, Auxiliary arm with advanced the SP services platform, carrying large job security. The electronic control system is sealed, protective properties, can be adapted to the construction of high dust environment.

5, Simple operation and easy maintenance.

2, Crawler Drilling Jumbo:

Level Surface Drilling Jumbo

Big Slope Drilling Jumbo

Dual Power Drilling Jumbo

Narrow Size Drilling Jumbo

Open Pit Mining Drilling

Face Hydraulic Crawler Drilling Jumbo / Face Drilling Rig

The crawler drilling jumbo, is a kind of underground construction machinery typically used in the drilling the blasting holes of tunnel, such as mining, diversion, railway and national defense tunnel, single or double booms can deal with different size of tunnel.

Our face crawler drilling jumbo / face drilling rig is mainly used to drill blast holes for small to medium sized tunneling construction in coal mine and other underground engineering. Electricity power or twin power drilling jumbo are available for option. Advanced hydraulic rock drilling system with anti-jamming mechanism ensures rapid drilling speed and high efficiency. Flexible drilling mechanism makes the jumbo drilling on face, roof, side wall and anchor holes upward. With modular designed, this small compact jumbo features great mobility, and strong grade ability, thus can improve working environment and get efficiency, quality development.

3, Rail Drilling Jumbo:

Rail Single Boom Drilling Jumbo

Mining Drilling Jumbo

Hydraulic Drilling Jumbo

Face Drilling Jumbo

Parallel Drilling Jumbo

Blasting Drilling Jumbo ...

The drilling jumbo greatly improves working environment, and gets efficiency and quality development. Electricity power and twin power drilling jumbo are available for option.

Drilling jumbo is mainly used to drill blast holes for tunneling constructions in mining, metallurgy, water and electricity, railway, highway engineering, etc. Siton drilling jumbo can be used in small tunnel sections 2x2m Min. As well as big tunnel section 7.5x8m Max.

Siton Mining Boomer


Main Characteristics of Drilling Jumbo / Mining Boomer:

1. Drilling jumbo / Mining Boomer is safe and simple to operate, incorporates the auto stop and anti-jamming function, auto-stop at end- point and auto wash.

2. The boomer can not only drill blast hole, on the basis of section, with our patent impeller, but can also drill bolt hole conveniently.

3. There are crawler type and wheel type of drilling jumbo. The crawler type can assemble diesel engine, solving the problem of long distance transition.

4.Compare with the air jumbo drill, the drilling jumbo is better for human health. It needs less workers with high efficiency.

A jumbo drilling machine can support, promote, and move one or more drill vehicles. It is drill equipment used in tunneling and underground engineering. Thus it is also called tunneling jumbo. It is mainly applied in tunnel and culvert excavation in the field of mining, metallurgy, water and electricity, railway, highway, etc. This jumbo drilling machine can move and support many drill vehicles working together.

Maintenance and Repair of Drilling Jumbo/ Minging Boomer:

1. Please refer to service manual to maintain and take good care of this jumbo drilling machine to prolong the operating life.

2. Remember to refer to the components atlas to purchase parts of this tunneling jumbo from the original supplier, in order to prolong the operating life.

3. The components are delivered along with the jumbo drilling machine.

If you are looking for drilling jumbo / face drilling rigs / mining boomer, please feel free to contact us. We want to be your partner moving forward!
