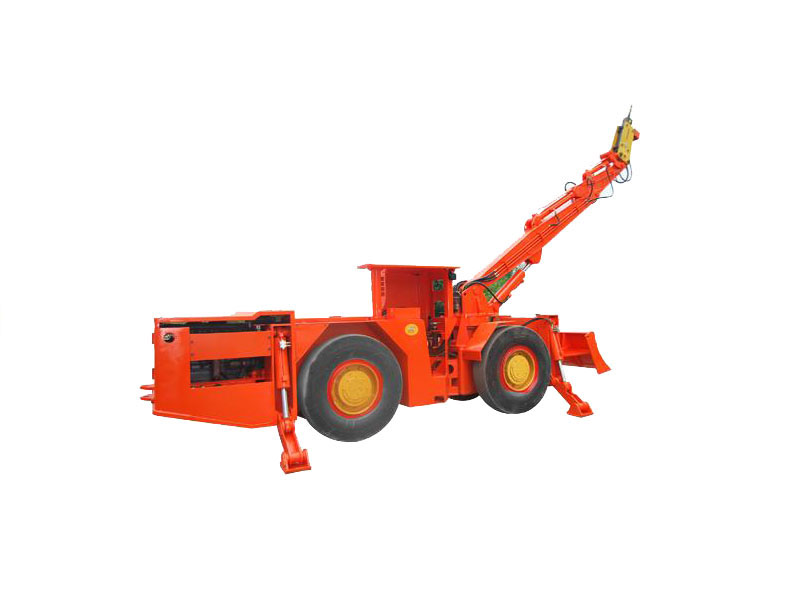

Mine Scaler XYQM-200

Home » Products » Mine Scaler » Scaler XYQM-200

Technical Specifications of Mine Scaler XYQM-200:

Adopts the America DANA torque converter, power shift transmission and drive axle.

To integrate the parking brake and woking brake as one system, SAHR brake (Spring applied hydraulic release).

Rear drive axle adopts dual supports swing rack and reduces failure rate.

Four legs with oil cylinder can independently control, easily locate the position in different working situation and adjust the vehicle level.

Technical Parameters of Mine Scaler XYQM-200:

Diesel Engine	F6L912W/ 63KW	Working Arm Swing Angle	80°
Hydraulic Torque Converter	C272	Min. Turning Radius	Inner 2760 MM Outer 5265MM
Power Shift Transmission	RT20326	Max. Turning Angle	±38°
Braking System	Integrate parking brake and working brake as one system, SAHR brake	Min. Ground Clearance	260MM
Braking System		Rear Drive axle Swing Angle	±8°
Hammer Percussive Frequency	450- 1100BPM	Weight	12300Kg
Running Speed	First Gear 0~4.4 KM/H Second Gear 0~10.7 KM/H Third Gear 0~19.4 KM/H	Dimensions (transporting)	Length 8455 MM Width 1650 MM Height 2200 MM
Max. Climbing Ability	20°	Dimensions (transporting)	Length 8455 MM Width 1650 MM Height 2200 MM
