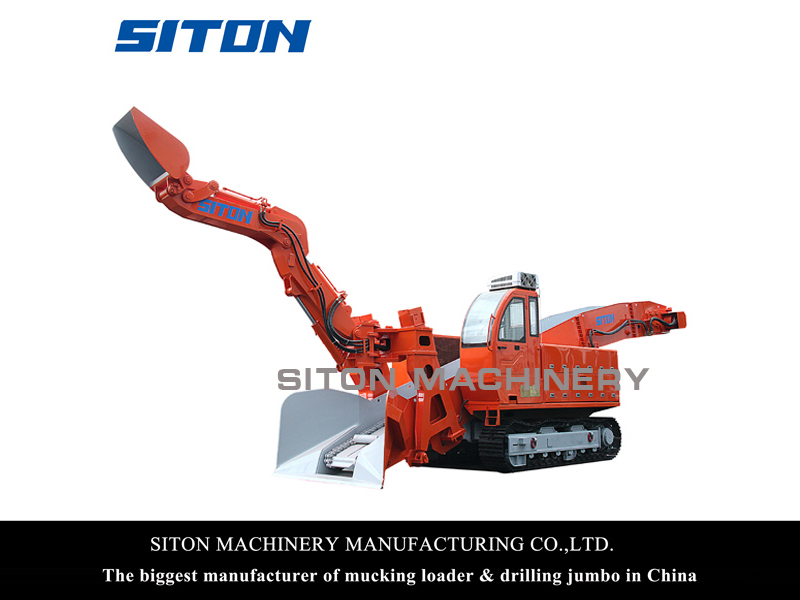

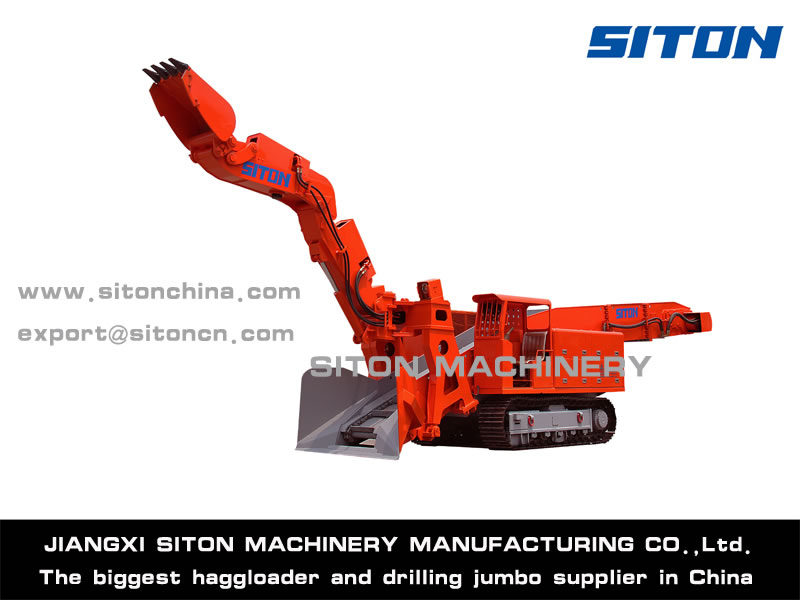

Siton Mucking Loader LWL-180
Home » Products » Mucking loader » Crawler Mucking Loader » Level Surface Crawler Mucking Loader » Siton Mucking Loader LWL-180
Crawler Mucking Loader for Level Surface
For Level Surface ≤15°
Main Overall Dimensions:
| Article | LWL- 180/ 75L | |
| Crawler contacting ground length | 2159mm | |
| Crawler inner width | 1130mm (Variable) | |
| Crawler plate width | 450/ 550mm | |
| Ground clearance | 395mm (Variable) | |
| Conveyor inner width | 780* 820mm | |
| Dimensions during transport | Length | 9400mm |
| Width | 2100mm | |
| Height | 2390mm | |
| Dimensions during operating | Length | 11500mm |
| Width | 2100mm | |
| Height | 2514mm | |
Working Range:
| Article | LWL- 180/ 75L |
| Digging width | 7030mm |
| Digging distance (from dozer blade) | 3260mm |
| Digging height | 4635mm |
| Digging depth below ground level | 990mm |
| Dumping height | 2000mm (Variable) |
| Minimum dumpling height | 1680mm (Variable) |
| Dumping distance | 2680mm (Variable) |
| Max.boom angle | ±55° |
| Adaptive tunnel dimension (Width× Height) | ≥3.8× 3.8m |
Functional Parameters:
| Loading ability | 180m³/h |
| Potencia general | 75kw |
| Weight | 19200kg |
| Traveling speed | 2.0%m/s |
| Scraper chain | Double chains double motors/ Single chain double motors |
| Adaptive tunnel slope | ≤15° |
| Minimum turing radius | ≥8m |
| Ground pressure | ≤0.1Mpa |
| Steering | Hydraulic |
| Speed of scraper chain | 44m/min |
| Volume of hydraulic tank | 400L |
| Maximum working pressure | 28Mpa |
| Hydraulic pump | Plunger pump×2 +gear pump×1 |
| Walking hydraulic motor | Radial plunger motor×2 |
| Conveyor hydraulic motor | Radial plunger motor×2 |

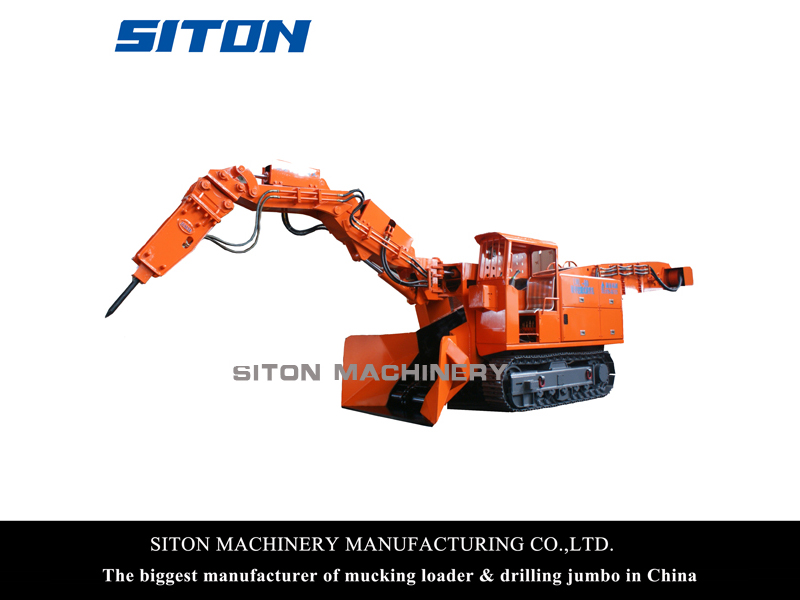

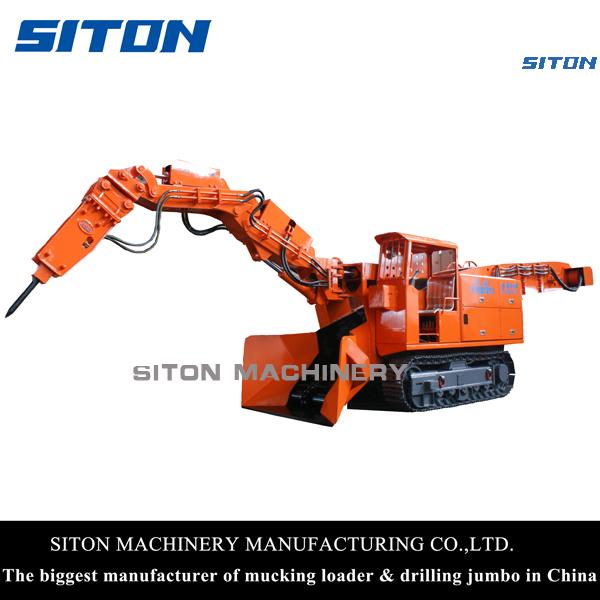

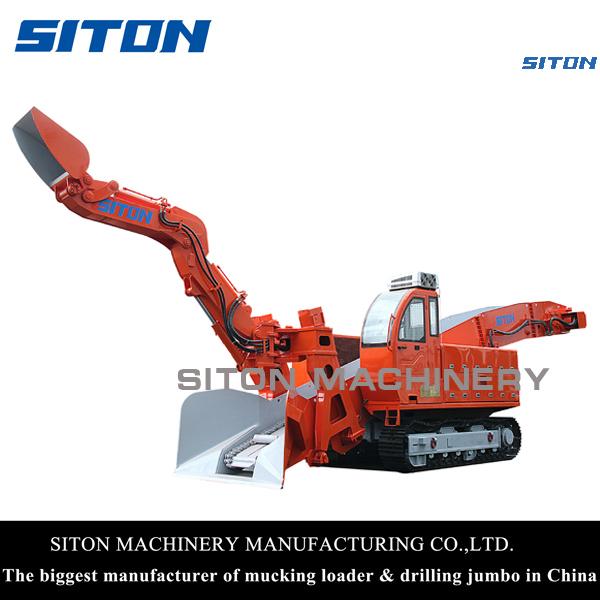

Diesel engine, hydraulic hammer, full closed cab with air-conditioning available on request.
.jpg)
Diesel engine, hydraulic hammer, full closed cab with air-conditioning available on request.

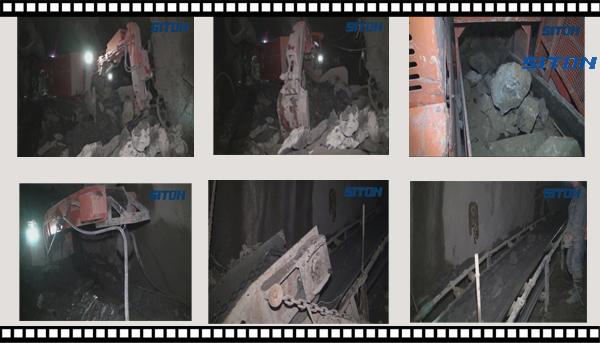

On site mucking loader with conveyor
