Scaling Jumbo
Home » Products » Auxiliary Series » Scaling Jumbo
Description of Scaling Jumbo :

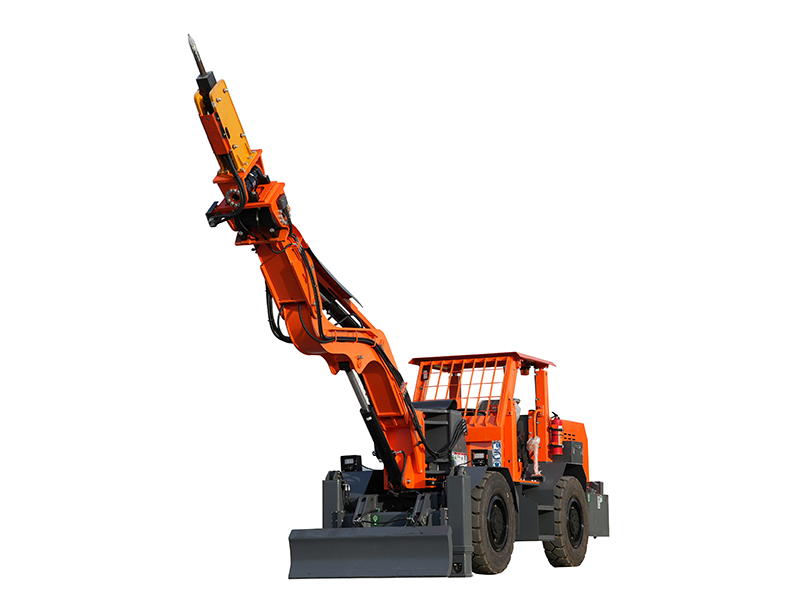

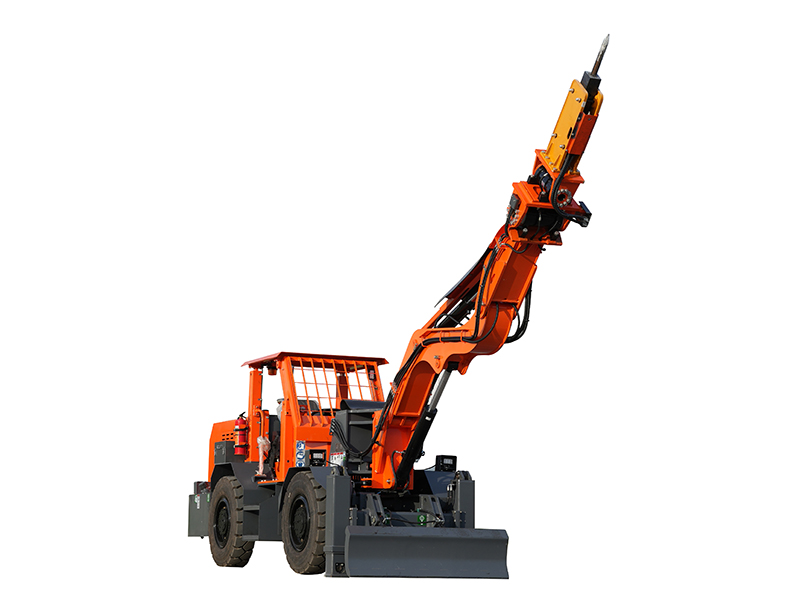

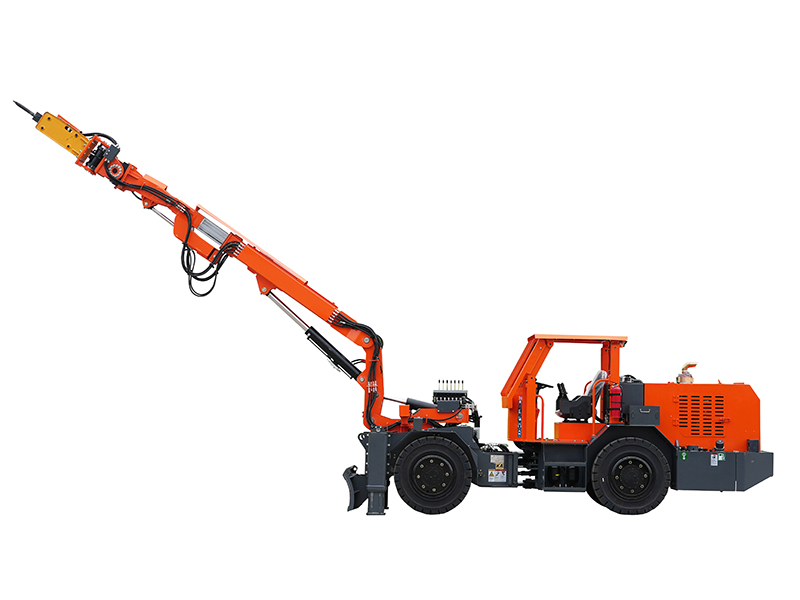

QM1 scaling jumbo is a special equipment for rock scaling and risk elimination in small and medium-sized tunnels. It gets four-wheel wet braking, articulated chassis with small turning radius, strong traffic capacity. The equipment realizes mechanization of scaling operation. It is mainly applicable to underground mine and various underground construction tunnels, quickly and effectively remove the unstable rocks on roof and two sides of the tunnel face that are easy to fall, collapse and relatively hidden after blasting operation, so as to prevent the occurrence of rock falling accidents, To ensure the safety of operators and machines. Two models are set according to the needs of customers, QM1 with a reaching height of 6m and QM1L with a reaching height of 8m.

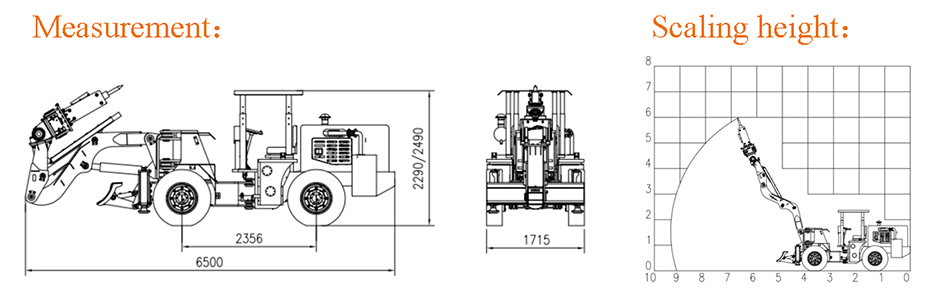

Parameters of Scaling Jumbo :

Item

Unit

QM1

QM1L

Whole machine

Dimension(LXWXH)

mm

7260(A)x1720(B)x2390(C)

7760(A)x1720(B)x2390(C)

Weight

kg

9500

10500

Control method

mm

Electro-hydraulic Proportional control

Electro-hydraulic Proportional control

Working device

Impact Energy

J

362

362

Impact frequency

HZ

600-1100

600-1100

Drill rod diameter

mm

φ53

φ53

Max.stretching length F

mm

5200

5200

Max.scaling height E

mm

6000

8000

Chassis

Steering system

/

Articulated

Articulated

Turning radius/inner R1

mm

≤2800

≤3250

Turning radius/outer R2

mm

≤5000

≤5250

Climbing ability

(°)

≤14

≤14

Drive mode

/

Diesel engine

Diesel engine

Min.ground clearance

mm

≥280

≥280

Frame swing angle

(°)

8

8

Body steering angle

(°)

±35

±35

Fuel tank volume

L

110

110

Traveling speed/forward

Km/h

Ⅰ gear 4,Ⅱ gear 15

Ⅰgear 4,Ⅱgear 15

Traveling speed/backward

Km/h

Ⅰ gear 4,Ⅱgear 15

Ⅰ gear 4,Ⅱgear 15

Diesel engine brand

/

Yanmar

Yanmar

Rated power of diesel engine

KW

54.3

54.3

Diesel exhaust emission

/

National standard III

National standard III

Machines for underground mining project:

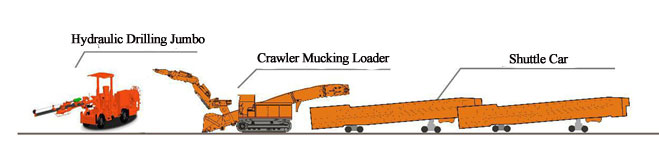

Machines for tunnel project:
