Crawler Muck Loader
Home » Products » Mucking Loader » Crawler Muck Loader
Crawler Mucking Loader:

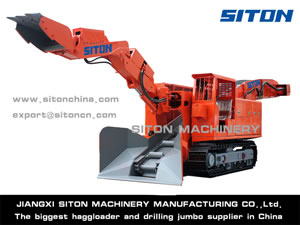

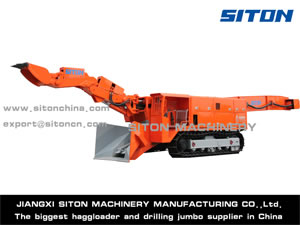

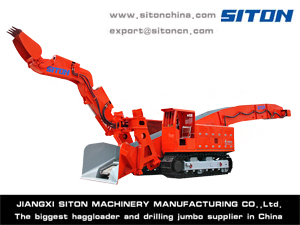

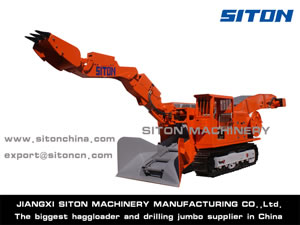

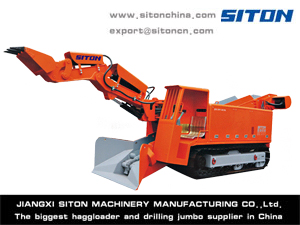

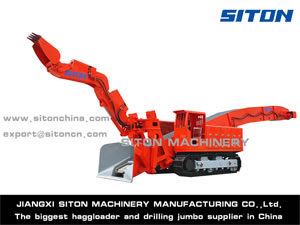

Crawler Muck Loader

Description of Crawler Muck Loader: The crawler muck loader is also known as tyre belt haggloader. We mainly provide two kinds of crawler mucking loader for clients worldwide: crawler muck loader for big slopes and crawler muck loader for level surfaces.

  • For Big Slope (≤ 32°)
  • For Level Surface (≤ 15 °)

Introduction:

The crawler muck loader for big slope is mainly used in the drilling of mine roadway and semi-coal roadway, and the slope angles should be equal to or less than 32°.

Also, this kind of tyre belt haggloader can be applied in the loading operation of railway tunnel construction and national caves construction. Worked with the colliery hydraulic drilling machine, the crawler muck loader for big slope can achieve the mechanized operation of colliery drilling. The slope angle grade ranges from +20°to -32°. By improving its drilling speed, it can be used in the large-scale section.

Our crawler muck loader for big slope can be divided into these types such as LWLX-80, LWLX-100, LWLX-120, LWLX-150, LWLX-180 and LWLX-60.

Features:

(1) The crawler muck loader for big slope has strong loading capacity. By adopting lubricating crawler belt, it is easy to adjust the tension of the crawler attachment. At the same time, by using the sturdy and durable excavator parts such as teeth, the product has a good inter-convertibility.

(2) The conveyor can discharge rock into the auto dumper, Shuttle Mining Car, side-dumping car, belt conveyor, skip and other transshipment equipments. The dumping height is designed according to the requirements of our customers.

(3) The major movement of this crawler muck loader is controlled by the pilot value, and this loading machinery works flexibly and can be operated easily. It also has a good climbing capacity and can work without impact.

(4) By installing the hydraulic hammer, we can break, repair, and blast the huge rock and coal sheet on the roadway baseplate or on the bottom of the side-panel.

(5) The working surfaces of this crawler muck loader will be cleaned automatically by itself.

Parameters of LWLX-150/55L Crawler Muck Loader:

Main Overall Dimensions:

LWLX-150/55L
Crawler contacting ground length 2560mm
Crawler inner width 1360mm (Variable)
Crawler plate width 400/500mm
Ground clearance 350mm (Variable)
Conveyor inner width 780mm
Dimensions during transport Length 9500mm
Width 2142mm
Height 2450mm
Dimensions during operating Length 11700mm
Width 2142mm
Height 2810mm

Working Range:

LWLX-150/55L
  Standard arm Short arm(selective)
Digging width 6870mm 5900mm
Digging distance (from Dozer Blade) 2957mm 2470mm
Digging height 3563mm 3330mm
Digging depth below ground level 915mm 800mm
Dumping height 2200mm (Variable)
Minimum dumpling height 1750mm (Variable)
Dumping distance 3170mm (Variable)
Max.boom angle ±55°
Adaptive tunnel dimension (Width × Height) ≥3.0×3.0m

Functional Parameters:

Loading ability 150m³/h
Potencia general 55kw
Weight 15300kg
Traveling speed 0.25±5%m/s
Scraper chain Double chains double motors /Single chain double motors
Adaptive tunnel slope ≤32°
Minimum turning radius ≥7m
Ground pressure ≤0.1Mpa
Steering Hydraulic
Speed of scraper chain 39m/min
Volume of hydraulic tank 260L
Maximum working pressure 32Mpa
Hydraulic pump Plunger pump×2+gear pump×2
Walking hydraulic motor Radial plunger motor×2
Conveyor hydraulic motor Radial plunger motor×2

Introduction:

The crawler muck loader is also called crawler haggloader or slagging off machine. It is a kind of high efficiency and continuous production equipment used in coal mine. The crawler muck loader for level surface is mainly applied in drilling of mine roadway and semi-rock roadway.Besides, it can also be applied in the loading operation of railway tunnel construction and national caves construction. Working with the colliery hydraulic drilling machine, the crawler muck loader for big slope can achieve the mechanized operation of colliery drilling. The grade is from +20°to -32°. By improving its drilling speed, it can be used in the large-scale section.

Feature:

(1) The crawler muck loader for level surface has strong loading capacity. By adopting lubricating crawler belt, it is easy to adjust the tension of the crawler attachment. At the same time, by using the sturdy and durable excavator parts such as teeth, it possesses a good inter-convertibility.

(2) The conveyor can discharge the rock into the auto dumper, Shuttle Mining Car, side-dumping car, belt conveyor, skip and other transshipment equipments. The crawler muck loader for level surface can be designed according to the requirements of customers.

(3) The major movement is controlled by the pilot value. It is flexible and can be operated easily. It also has a good climbing capacity and can work without impact.

(4) By installing the hydraulic hammer, we can break, repair, and blast the huge rock and coal sheet on the roadway baseplate or on the bottom of the side-panel.

(5) The working surface can be cleaned automatically by itself.

Type:

LWL180 NEW, LWL-80 37 NEW, LWL-80 NEW, and LWL-120 ENEW.

Typical Type Parameter of LWL-80/37L:

Main Overall Dimension:

LWL-80/37L
Crawler contacting ground length 1890mm
Crawler inner width 1100mm (Variable)
Crawler plate width 300/400mm
Ground clearance 230mm (Variable)
Conveyor inner width 550mm
Dimensions during transport Length 6500mm
Width 1700mm
Height 1954mm
Dimensions during operating Length 8090mm
Width 1700mm
Height 2120mm

Working Range:

LWL-80/37L
Digging width 4800mm
Digging distance (from Dozer Blade) 1820mm
Digging height 2470mm
Digging depth below ground level 480mm
Dumping height 1440mm (Variable)
Minimum dumpling height 1360mm (Variable)
Dumping distance 1800mm (Variable)
Max. boom angle ±55°
Adaptive tunnel dimension (Width × Height) ≥2.4×2.4m

Functional Parameters:

Loading ability 80m³/h
Potencia general 37kw
Weight 7500kg
Traveling speed 0.6±5%m/s
Scraper chain Double chains double motors /Single chain double motors
Adaptive tunnel slope ≤15°
Minimum turning radius ≥5m
Ground pressure ≤0.1Mpa
Steering Manual
Speed of scraper chain 48.9m/min
Volume of hydraulic tank 170L
Maximum working pressure 28Mpa
Hydraulic pump Plunger pump×2+gear pump×2
Walking hydraulic motor Radial plunger motor×2
Conveyor hydraulic motor Radial plunger motor×2

Company Brief: We are professional crawler muck loader (tyre belt haggloader) manufacturer in China. Our factory make full range of mining equipment such as Track Mucking Loader, tyre belt muck loader, wheel mucking loader, etc. With the the security certificate and the patent certificate of national grade, and years of effort on managering the markets, siton now processes more than 60% market share in this field. Our products are well received in Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you are processing the underground projects and need the crawler muck loader (tyre belt haggloader), please contact us freely.
