WJD-2G Electric LHD Loader
Home » Products » LHD Loader » LHD Loader Electrical » WJD-2G Electric LHD Loader

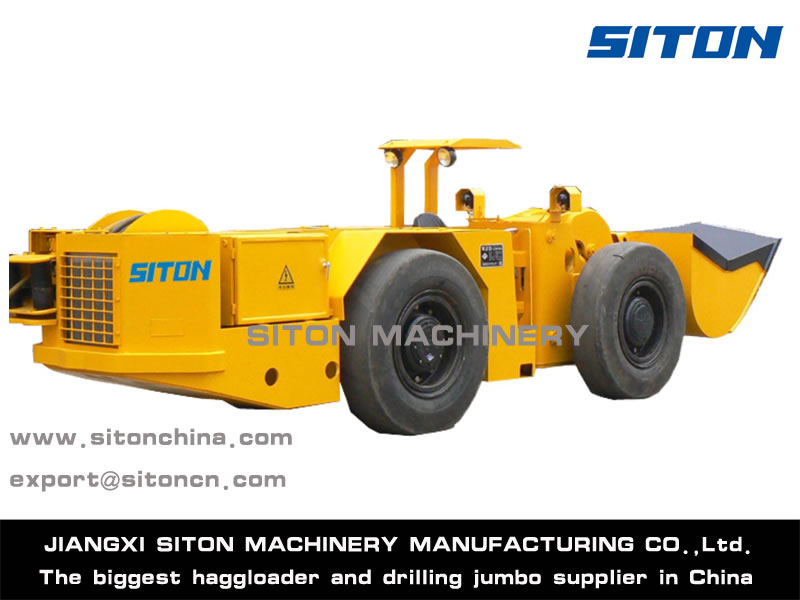

WJD-2G Electric LHD Loader
Specification of WJD-2G Electric LHD Loader:
Model of Electric LHD Underground Wheel Loader WJD-2G
Rated Loading Volume (m3) 2
Rated Loading Capacity (kg) 4000
Max. Traction Force (Kn) 90
Max. Shovel Force (Kn) 95
Traveling Speed (km/h) of Electric Scooptram Position I Forward/ Backward 0-3
Position II Forward/ Backward 0-4.6
Position III Forward/ Backward 0-10.5
Min. Turning Radius (mm) Inner 2700
Outer 5150
Max. Discharge Height (mm) 1800
Max. Discharge Distance (mm) 857
Angle of Discharge 40°
Ground Clearance (mm) 270
Climbing Ability of Electric Scooptram 14°
Power (KW) of WJD-2G Electric LHD Loader 75
Operation Mass (kg) 12800
Overall Dimension of Electric LHD Underground Wheel Loader Length (mm) 7325
Width (mm) 1780
Height (mm) 2100
Description of WJD-2G Electric LHD Loader:

WJD-2G electric LHD loader is equipped with many outstanding performance parts. This electric scooptram mining equipment (underground scrap loader) can be used to pick, load and transport the loosen materials on the sport after the explosion.

Feature of WJD-2G Electric LHD Loader:

The drive system of such WJD-2G electric LHD underground wheel loader is composed of hydraulic torque converter and gear box which are all from DANA. The front driven wheel of this underground loader (LHD) is equipped with NO-SPIN anti-skidding differential mechanism. What’s more, the power system of electric LHD underground wheel loader adopts electric motor without off-gas.
