Bottom Side Dumping Wagon
Home » Products » Mining Haulage Equipment » Mining Wagon » Bottom Side Dumping Wagon

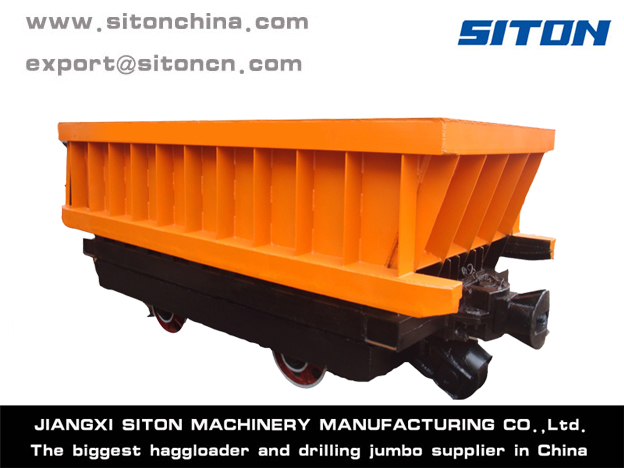

Bottom Side Dumping Wagon
Technical Parameters of Bottom Side Dumping Wagon:

Item

Unit

Main Parameters

Model

YDCC 2-7

YDCC 2-6

YDCC 4-9

YDCC 4-7

YDCC 4-6

YDCC 6-9

YDCC 6-7

YDCC 10-9

YDCC 10-7

Capacity

m3

2

4

6

10

Loading ability

T

5

10

15

25

Track Gauge

mm

762

600

900

762

600

900

762

900

762

Wheel base

mm

1000

1300

2200 (800)

2200 (900)

Wheel diameter

mm

400

450

400

450

Coupling form

Bolt chain ring

Bolt chain ring

Bolt chain ring

Bolt chain ring

Traction height

mm

425

450

520

780

Dumping Angle

(° )

≥50

≥50

≥50

≥50

Overall

Dimension

Length

mm

3210

3657

5400

5770

Width

mm

1420

1450

1845

2057

Height

mm

1280

1700

1690

2066

Weight

Kg

2380

3682

6653

11580

Traction force

Kn

60

60

60

60

Min. Turning radius

m

20

20

20

20
