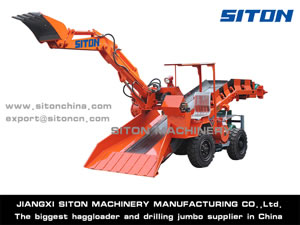

Wheel Mucking Loader
Home » Products » Mucking Loader » Wheel Mucking Loader
Wheel Mucking Loader (LWT Series):
Wheel Mucking Loader:

Introduction:

The wheel mucking loader, also known as wheel haggloader or wheel tunnel excavator, is a type of underground mucking loading machinery mainly used in narrow space mining operation such as metal mine, water transferred roadway, etc.

Besides, it can also be used to collect and transport (convey) different kinds of clastic rock from various engineering.

Features of Wheel Mucking Loader:

1. The conveyor of this wheel mucking loader or wheel haggloader can discharge the rock into the auto dumper, Shuttle Mining Car, side-dumping car, belt conveyor, skip and other transshipment equipment. The dumping height can be designed according to the requirements of customers.

2. By adopting the fully hydraulic transmission of motor-driven, this wheel tunnel excavator has the functions such hydraulic walking, drilling and collecting, transport, and loading. The working surface will be cleaned automatically by itself.

3. By adopting the manual operated valve, the wheel mucking loader can be operated easily. With a seat and cab, the intensity of work can be alleviated. Its driving force includes dynamo and diesel.

Technical Parameters:
Model Unit Dual power Single power
LWT-80/18T LWT-80/18T
Weight Kg 3800 3800
Loading capacity M3/h 80 80
Drive mode Electric/diesel(four wheels) Electric(four wheels)
Digging width mm 2900(short arm) 2600
3000(middle arm)
3200(long arm)
Digging height mm 2200(short arm) 1900
2500(middle arm)
2800(long arm)
Digging distance (from dozer blade) mm 1500(short arm) 1300
1650(middle arm)
1850(long arm)
Digging depth mm 800 430
Dumping height mm 1400 (Variable) 1200 (Variable)
Dumping distance mm 1530 (Variable) 1150 (Variable)
Traveling speed m/s 1.03/0.58 1.03/0.58
Gradient (°) ≤15(Hardstand) ≤15(Hardstand)
Rated working gradient (°) ≤8 ≤8
Min. turning radius m ≤4 ≤4
Conveyor speed m/min 39 39
Max. work pressure Mpa 11 11
Ground clearance mm ≤160 ≤160
General power kw 18 18
Wheel base mm 1600 1490
Wheel tread mm 1470 1180
Max. material dimension (W×H) mm 500×400 400×300
Max. Boom angle (°) ±30 ±30
Dimensions during operating Length mm 7100 6300
Width mm 1720 1500
Height mm 1890 1600
Adaptive tunnel dimension (W×H) m ≥2.2×2.2 ≥2×2

Note: The above parameters are only for reference. They may be different from the actual parameters.

About Siton:

Founded in 1992, Siton machinery manufacturing Co., Ltd., is a professional wheel mucking loader (wheel haggloader) manufacturer in China. Our products include hydraulic crawler drilling jumbo, Shuttle Mining Car, mucking road header, fully hydraulic side dumping rock loader, track concrete mixer, side dumping wagon, belt conveyor. We have obtained the security certificate and the patent certificate of national grade. Possessing more than 60% market share, our products are well received in Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you are interested in our wheel mucking loader, please contact us freely.
