WJD-3 Electric LHD Loader
Home » Products » LHD Loader » LHD Loader Electrical » WJD-3 Electric LHD Loader

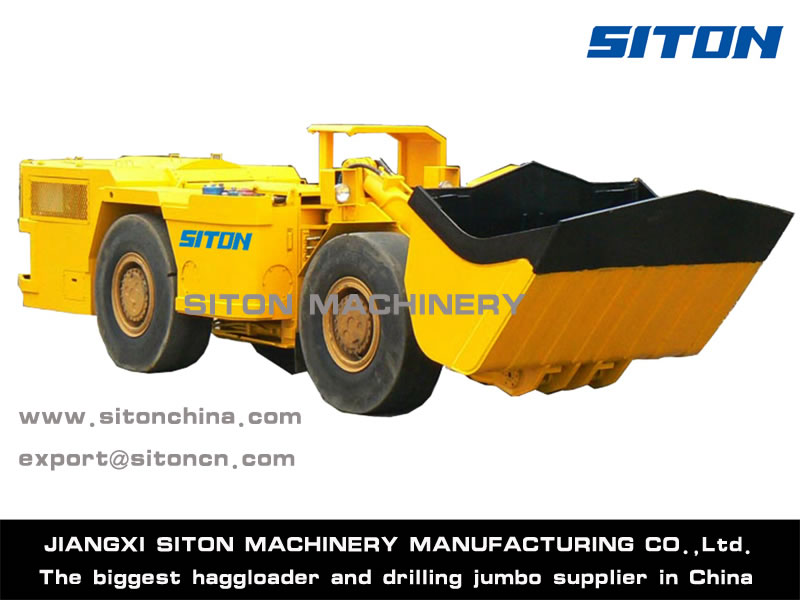

WJD-3 Electric LHD Loader
Specification of WJD-3 Electric LHD Loader:
Model of Electric LHD Underground Wheel Loader WJD-3
Rated Loading Volume (m3) 3
Rated Loading Capacity (kg) 6500
Max. Traction Force (Kn) 180
Max. Shovel Force (Kn) 120
Traveling Speed (km/h) of Electric Scooptram Position I Forward/ Backward 0-3.5
Position II Forward/ Backward 0-7.5
Position III Forward/ Backward 0-12
Min. Turning Radius (mm) Inner 3330
Outer 6100
Max. Discharge Height (mm) 1325
Max. Discharge Distance (mm) 1477
Angle of Discharge of Electric Scooptram 40°
Ground Clearance (mm) 330
Climbing Ability 14°
Power (KW) WJD-3 Electric LHD Loader 90
Operation Mass (kg) 17500
Overall Dimension of Electric LHD Underground Wheel Loader Length (mm) 9150
Width (mm) 2174
Height (mm) 2132
Description of WJD-3 Electric LHD Loader:

WJD-3 electric LHD loader is equipped with many outstanding performance parts. This electric scooptram mining equipment (underground scrap loader) can be used to pick, load and transport the loosen materials on the sport after the explosion.

Feature of WJD-3 Electric LHD Loader:

The drive system of such WJD-3 electric LHD underground wheel loader is composed of hydraulic torque converter and gear box which are all from DANA. The front driven wheel of this underground loader (LHD) is equipped with NO-SPIN anti-skidding differential mechanism. What’s more, the power system of electric LHD underground wheel loader adopts electric motor without off-gas.
