UK-4 Underground Truck
Home » Products » Underground Truck » UK-4 Underground Truck

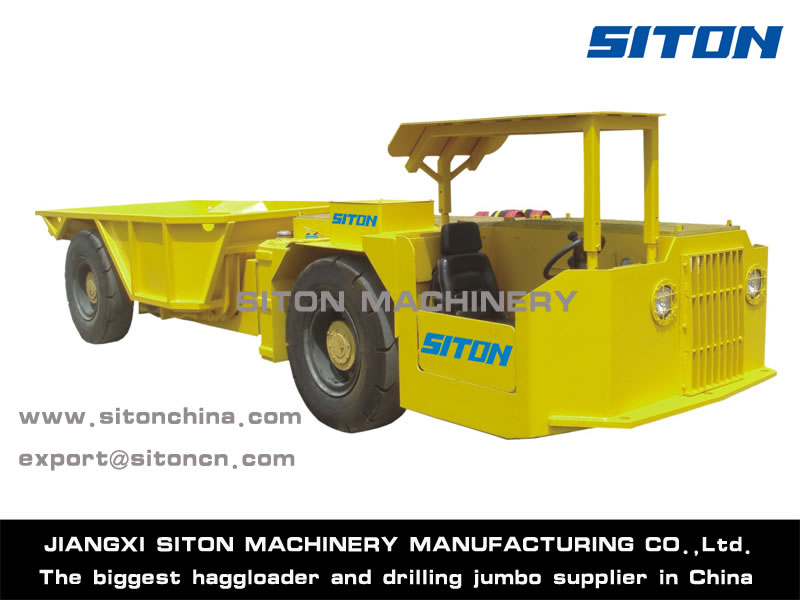

UK-4 Underground Truck
Main Overall Dimensions:
Model of Underground Mining Truck UK-4
Rated Loading Volume (m3) 2
Rated Loading Capacity (kg) 4000
Working Gradient 14°
Traveling Speed (km/h) 10
Carriage Working Time (S) Lifting 10
Falling 9
Turning 5
Min. Turning Radius (mm) Inner 3543
Outer 6048
Turning Angle 45o
Power (KW/ rpm) 53.5/2500
Engine Brand Deutz
Engine Type of Underground Mining Dump Truck Diesel
Engine Model D914L04
Driving Axle of Mine Transporter Articulated Dump Truck ZL20F
Smooth and Cut-resistance Tyre Size 10.00-20
Operation Weight (kg) 11000
Net Weight (kg) of Diesel Underground Dump Truck 7000
Overall Dimension of Mine Transporter Articulated Dump Truck Length (mm) 7131
Width (mm) 1820
Height (mm) 1682

Siton is a professional manufacturer and supplier of UK-4 Underground Truck in China. In addition to this model of mine transporter articulated dump truck, the other models include UK-6, UK-10, XTUT-12, etc. we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, etc. These products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.
