XTUT-30 Underground Truck
Home » Products » Underground Truck » XTUT-30 Underground Truck

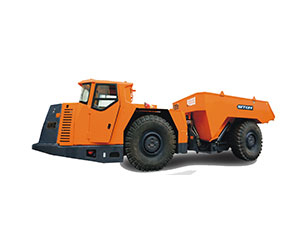

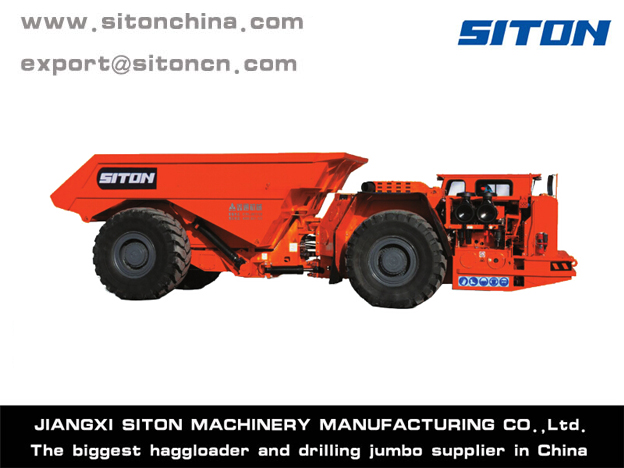

XTUT-30 Underground Truck
Introduction of XTUT-30 Underground Truck:

Our XTUT-30 a compact underground truck that is built for narrow-vein mining applications.

It carries high payloads for its weight, and is maneuverable and quick in inclines.

High power-weight ratio, Increase the Climbing Capacity.

Excellent payload capacity improves productivity and provides a low cost per hauled ton.

Small envelope size and turning radius enable easy navigation.

Power system adopts Cummins engine with water cooling and low pollution.

Heavy duty articulated chassis with special underground tyres.

Driving System adopts America DANA Torque converter, Power shift gearbox and Axles.

Hydraulic release, spring brake system ensure more safety operation.

Braking system adopts full hydraulic braking system, Safe and Reliable Performance operation in bad environment, high water content and muddy tunnel.

America Parker hydraulic system components, Good Quality and Reliable Performance.

Optimized bucket design, Quick and Thorough Dumping.

Ground-level daily maintenance enables safer servicing.

Optional ergonomic driving cab design with max. safety and avoid operator fatigue.

Functional Parameters of XTUT-30 Underground Truck:

Item

Unit

XTUT-30

Rated Load Capacity

T

30

Bucket Capacity

M3

15

Ground Clearance

mm

400

Turning Angle

(° )

±42

Diesel Output

Kw/rpm

300/2300

Fuel Tank Capacity

L

Converter

DANA

Gearbox

DANA

Axles

DANA

Braking System

Multi Disc Wet

Departure Angle

(° )

15

Rear axle swing angle

(° )

±8

Climbing Capacity

%

25

Item

Unit

XTUT-30

Tyres Size

22×25R

Discharge Angle

(° )

65

Hydraulic oil tank

L

400

Driving speeds

1st Gear

Kw/h

5.9

2nd Gear

Kw/h

10.4

3rd Gear

Kw/h

17.8

4th Gear

Kw/h

30.1

Turning Radius

Inner

mm

5050

Outer

mm

9100

Main Dimensions

Length

mm

9980

Width

mm

2996

Height

mm

2560

Weight

Kg

28000

Driving Cab

Closed
