WJD-1.5C Electric LHD Loader
Home » Products » LHD Loader » LHD Loader Electrical » WJD-1.5C Electric LHD Loader

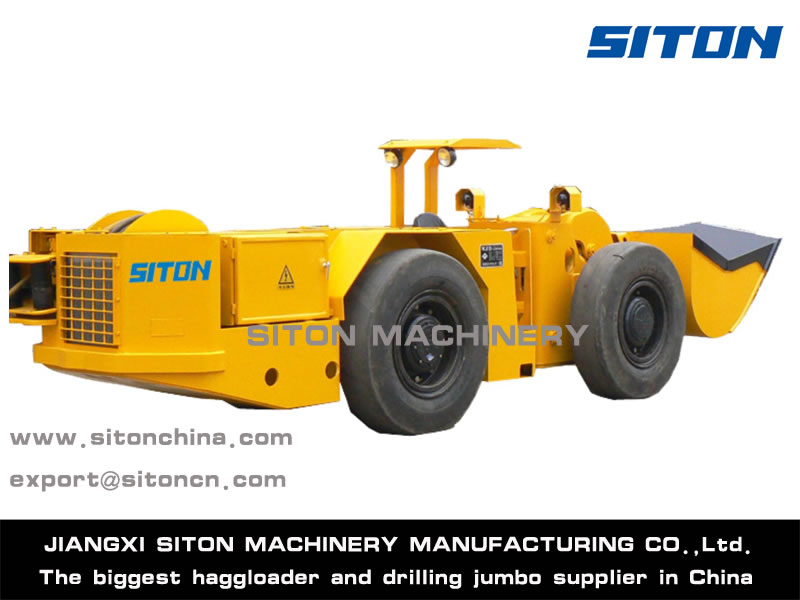

WJD-1.5C Electric LHD Loader
Specification of WJD-1.5C Electric LHD Loader:
Model of Electric LHD Underground Wheel Loader WJD-1.5C
Rated Loading Volume (m3) 1.5
Rated Loading Capacity (kg) 3000
Max. Traction Force (Kn) 82
Max. Shovel Force (Kn) 82.5
Traveling Speed (km/h) of Electric Scooptram Position I
Forward/ Backward
0-2.4
Position II
Forward/ Backward
0-4.8
Position III
Forward/ Backward
0-9.6
Min. Turning Radius (mm) Inner 2890
Outer 5000
Max. Discharge Height (mm) 1350
Max. Discharge Distance (mm) 1025
Angle of Discharge 40°
Ground Clearance (mm) 240
Climbing Ability 14°
Power (KW) of WJD-1.5C Electric LHD Loader 55
Operation Mass (kg) 11500
Overall Dimension of Electric LHD Underground Wheel Loader Length (mm) 6900
Width (mm) 1700
Height (mm) 2100
Description of WJD-1.5C Electric LHD Loader:

WJD-1.5C electric LHD loader is equipped with many outstanding performance parts. This electric scooptram mining equipment (underground scrap loader) can be used to pick, load and transport the loosen materials on the sport after the explosion.

Feature of WJD-1.5C Electric LHD Loader:

The drive system of such WJD-1.5C electric LHD underground wheel loader is composed of hydraulic torque converter and gear box which are all from DANA. The front driven wheel of this underground loader (LHD) is equipped with NO-SPIN anti-skidding differential mechanism. What’s more, the power system of electric LHD underground wheel loader adopts electric motor without off-gas.
