Track Mucking Loader
Home » Products » Mucking Loader » Track Mucking Loader
Track Mucking Loader (LW Series):
LW-80
LW-120
LW-150
LW-180

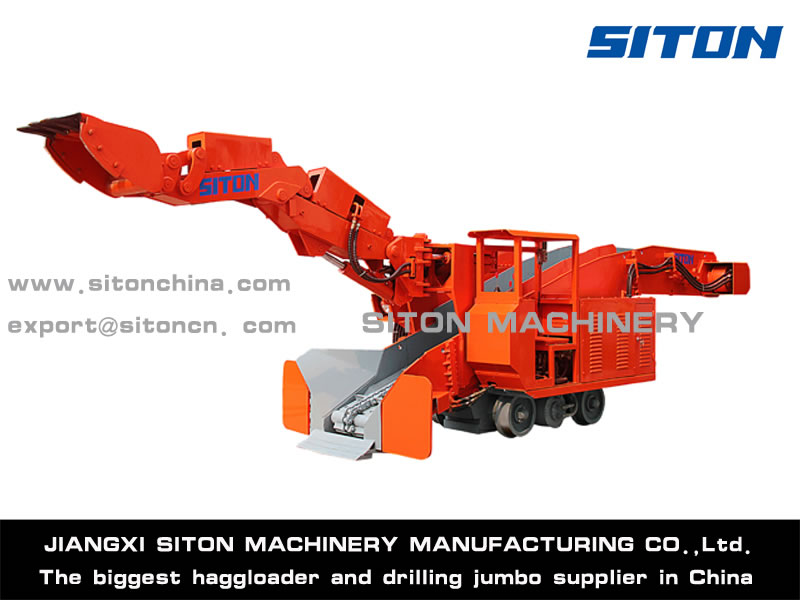

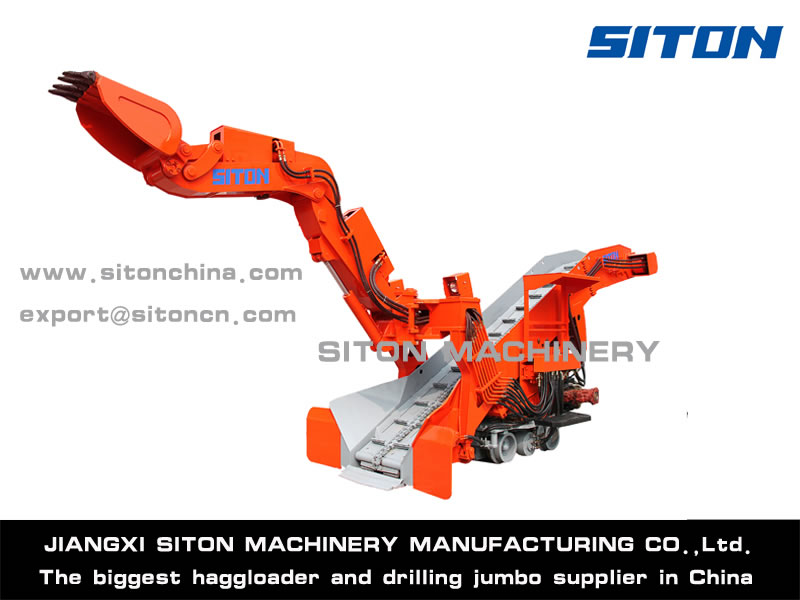

Track Mucking Loader
Track Mucking Loader
  • Track Mucking Loader
  • Track Mucking Loader
  • Track Mucking Loader
Description of Track Mucking Loader:

The Track Mucking Loader is also known as tracked haggloader or mining track loader, and it is mainly used in mine, railway tunnel, national defense engineering, hydraulic engineering, etc.

By adopting advanced technology at home and abroad, we develop this new, high efficient and energy-saving engineering machinery.

Features of Track Mucking Loader:

1. The Track Mucking Loader, or tracked haggloader, can work continuously to excavate, take the rock residue, and transport materials to the Shuttle Mining Car and other transshipment equipment. The conveyor can discharge the rock into the auto dumper, Shuttle Mining Car, side-dumping car, belt conveyor, skip, etc.

2. We can install hydraulic hammer to break, repair and blast the huge rock and coal sheet on the roadway baseplate or the bottom of the side-panel.

3. The working surface of this Track Mucking Loader, or mining track loader, can be cleaned automatically by itself.

4. With a human-centered design, this tracked haggloader adopts the air cooling equipment in the hydraulic system which helps us save a lot of manpower and money.

Technical Parameters:
Model Unit LW-180/55G LW-150/45G LW-120/45G LW-80/30.75G
Weight Kg 16800 13600 11500 6800
Loading ability m3/h 180 150 120 80
Digging width mm 7030 5800 3500 4800
Digging distance (from Dozer Blade) mm 3170 2550 2200 1840
Digging height mm 4635 3100 2270 2400
Digging depth mm 800 650 500 550
Dumping height mm 1586-2000 (Variable) 1586-2000 (Variable) 1426-1757 (Variable) 1250 (Variable)
Dumping distance mm 2200 (Variable) 2200 (Variable) 1900 (Variable) 2050 (Variable)
Traveling speed mm/min 0.89±5% 0.89±5% 0.89±5% 0.37/0.75
Scraper chain speed m/min 39 39 39 26
Scraper chain Single chain single motor Single chain single motor Single chain single motor Single chain single motor
Min. turning radius m ≥12 ≥12 ≥12 ≥12
Max. work pressure Mpa ≤20 ≤20 ≤20 ≤20
Clearance from track mm ≥27 ≥27 ≥27 ≥27
Whole power kw 55 55/45 45 30.75
Distance between bearings mm 1111 1111 1111 1111
Track gauge mm 600/762/900 600/762/900 600/762/900 600/762/900
Max. material size(Depth height) mm 880×730 880×730 780×650 480×610
Max. boom angle (°) ±55 ±55 ±55 ±55
Dimensions during transport Length mm 8000 7200 6800 6800
Width mm 1790 1790 1760 1480
Height mm 2430 2430 2315 1780
Dimensions during operating Length mm 9700 9100 7890 8260
Width mm 2515 2515 2264 1940
Height mm 2550 2550 2602 1855
Adaptive tunnel dimension (Width× Height) m ≥3.8×3.8 ≥3×3 ≥2.8×2.8 ≥2.2×2.2

Note: The above parameters are only for reference. They may be different from the actual parameters.
