WJD-1 Electric LHD Loader
Home » Products » LHD Loader » LHD Loader Electrical » WJD-1 Electric LHD Loader

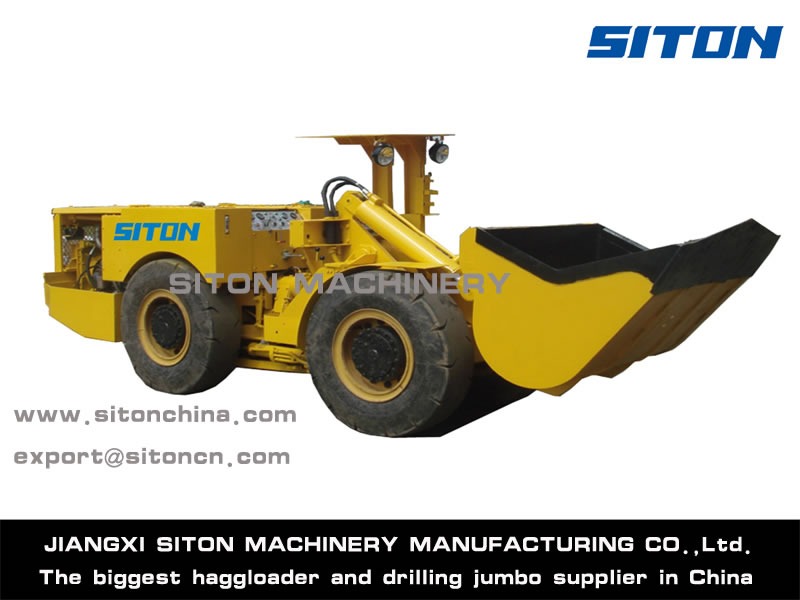

WJD-1 Electric LHD Loader
Specification of WJD-1 Electric LHD Loader:
Model of Electric LHD Underground Wheel Loader WJD-1
Rated Loading Volume (m3) 1
Rated Loading Capacity (kg) 2000
Max. Traction Force (Kn) 50
Max. Shovel Force (Kn) 42
Traveling Speed (km/h) 0~8
Min. Turning Radius (mm) of Electric Scooptram Inner 2350
Outer 4100
Max. Discharge Height (mm) 940
Max. Discharge Distance (mm) 729
Angle of Discharge 43°
Ground Clearance (mm) 190
Climbing Ability 14°
Power (KW) of WJD-1 Electric LHD Loader 45
Operation Mass (kg) 7000
Overall Dimension of Electric LHD Underground Wheel Loader Length (mm) 5800
Width (mm) 1320
Height (mm) 2000
Description of WJD-1 Electric LHD Loader:

This electric scooptram mining equipment can be used to pick, load and transport the loosen materials on the sport after the explosion. WJD-1 electric LHD loader is equipped with many outstanding performance parts. The power system of electric LHD underground wheel loader adopts electric motor without off-gas. What’s more, the drive system of such electric LHD underground wheel loader is composed of hydraulic torque converter and gear box which are all from DANA. The front driven wheel is equipped with NO-SPIN anti-skidding differential mechanism.
