Rock Mucking Machine
Home » Products » Mucking Equipment » Mucking Loader » Rock Mucking Machine


Description of Rock Mucking Machine:

The rock mucking machine can also be called the rock loading machine. With a loading capacity of 60-180 cube meters per hour, the rock mucking equipment can work continuously in tunnel and underground mining.

Application of Rock Mucking Machine:

The rock mucking machine is a kind of mechanical loading machinery mainly applied in coal mine and semi-coal road. It is applied to transport the sinking waste rock and clear the excavated rock.

Besides, the rock loading machine can also be used to handle materials such as wood chips, logs, trash, refuse, slag, mulch, demolition material, debris, etc. It can work well with tramcar, scraper conveyor and belt conveyor.

Type of Rock Mucking Machine:

For big slopes, we have LWLX-80, LWLX-100, LWLX-120, LWLX-150, LWLX-180 and LXLX-60 rock mucking machines.

For level or horizontal surfaces, we have LWL180 NEW, LWL-80 37 NEW, LWL-80 NEW, LWL-120 NEW rock loading machineries.

Typical One: LWLX-100/45L.

Main Overall Dimensions:
LWLX- 100/45L
Crawler contacting ground length 2407mm
Crawler inner width 941mm (Variable)
Crawler plate width 350/450mm
Ground clearance 310mm (Variable)
Conveyor inner width 580mm
Dimensions during transport Length 8100mm
Width 1690mm
Height 2100mm
Dimensions during operating Length 9700mm
Width 1690mm
Height 2310mm
Working Range:
LWLX- 100/45L
  Standard arm Short arm (selective)
Digging width 5300mm 4800mm
Digging distance (from dozer blade) 1970mm 1820mm
Digging height 2940mm 2470mm
Digging depth below ground level 540mm 480mm
Dumping height 1760mm (Variable)
Minimum dumpling height 1480mm (Variable)
Dumping distance 1700mm (Variable)
Max.boom angle ±55°
Adaptive tunnel dimension (Width× Height) ≥2.5×2.5m
Functional Parameters:
Loading ability 100m³/h
Potencia general 45kw
Weight 12200kg
Traveling speed 0.25±5%m/s
Scraper chain Single chain single motor
Adaptive tunnel slope ≤32°
Minimum turning radius ≥5.5m
Ground pressure ≤0.1Mpa
Steering Hydraulic
Speed of scraper chain 40m/min
Volume of hydraulic tank 240L
Maximum working pressure 32Mpa
Hydraulic pump Plunger pump×2+gear pump×2
Walking hydraulic motor Radial plunger motor×2
Conveyor hydraulic motor Radial plunger motor×1

Note: The above-mentioned parameters are only for reference. They may be different from the actual parameters.

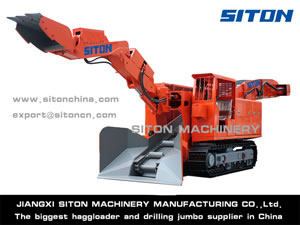

Rock Mucking Machine

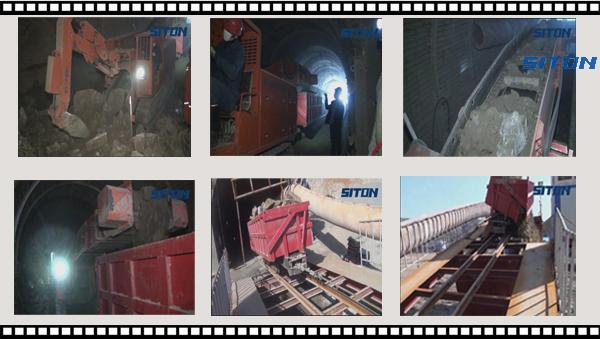

On site mucking loader with dumping truck

Rock Mucking Machine
