Tunnel Mucking Machine
Home » Products » Mucking Equipment » Mucking Loader » Tunnel Mucking Machine

Description of Tunnel Mucking Machine:

The tunnel mucking machine is also known as the tunnel excavation loader or tunneling haggloader.

1. With full hydraulic driven and operated by operating grip, the tunnel mucking machine is easy to operate and convenient to maintain. A person who can drive excavator or maintain an excavator can able to maintain and service the machine.

2. The structure of our tunnel mucking machine, or tunnel excavation loader, is compact and it is flexible to operate. The tunnel mucking machine can work in the roadway that is wet or with water. It can also work on a big working scope and load all sections without dead angle. There is no need to remove waste by manpower.


3. The tunnel mucking machine, or tunneling haggloader, consists of motor power and hydraulic system. Users can adjust the excavating power easily according to different mining circumstance. The tunnel mucking machine can also provide a more safe, comfortable and relaxed working conditions to workers.

Type of Tunnel Mucking Machine:

Our tunnel mucking loaders for big slopes are LWLX-80, LWLX-100, LWLX-120, LWLX-150, LWLX-180 and LXLX-60.

For level surfaces, we have LWL180 NEW, LWL-80 37NEW, LWL-80 NEW, and LWL-120 ENEW tunnel excavation loaders.

Typical One: LWL-120/55L.

Main Overall Dimensions:
LWL-120/55L
Crawler contacting ground length 2159mm
Crawler inner width 1130mm (Variable)
Crawler plate width 450/550mm
Ground clearance 395mm (Variable)
Conveyor inner width 780mm
Dimensions during transport Length 8900mm
Width 2100mm
Height 2390mm
Dimensions during operating Length 10580mm
Width 2100mm
Height 2514mm
Working Range:
LWL-120/55L
Digging width 5800mm
Digging distance (from Dozer Blade) 2650mm
Digging height 3100mm
Digging depth below ground level 770mm
Dumping height 1913mm (Variable)
Minimum dumpling height 1680mm (Variable)
Dumping distance 1992mm (Variable)
Max. boom angle ±55°
Adaptive tunnel dimension (Width × Height) ≥3×3m
Functional Parameters:
Loading ability 120m³/h
Potencia general 55kw
Weight 17800kg
Traveling speed 0.6±5%m/s
Scraper chain Double chains double motors /Single chain double motors
Adaptive tunnel slope ≤15°
Minimum turning radius ≥7m
Ground pressure ≤0.1Mpa
Steering Hydraulic
Speed of scraper chain 44m/min
Volume of hydraulic tank 400L
Maximum working pressure 28Mpa
Hydraulic pump Plunger pump×2+gear pump×2
Walking hydraulic motor Radial plunger motor×2
Conveyor hydraulic motor Radial plunger motor×2

Note: The above parameters are only for references. They may be different from the actual parameters.

Tunnel Mucking Machine

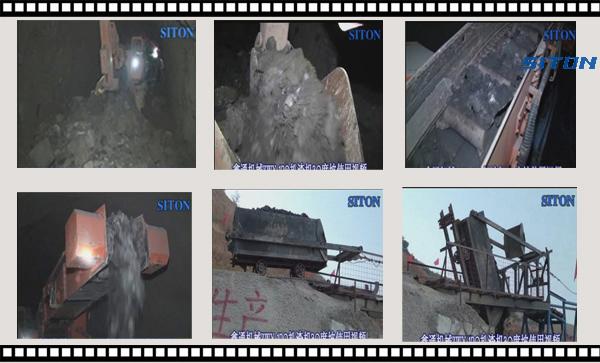

On site mucking loader with side dumping wagon

Tunnel Mucking Machine


Company Brief of Siton: As a professional manufacturer and supplier of tunnel mucking machine (in some place also named as tunnel excavation loader or tunneling haggloader) in China, Siton is professionally provide customers mining equipment since 1992. Our products mainly include mucking equipment, tunnel excavating equipment and mining haulage equipment. We also provide underground mucking loader(underground excavation loader), crawler mucking loader, tracked haggloader, etc.

Additionally, all our products have passed the security certificate and the patent certificate of national grade. Besides, our company possesses more than 60% market share. We establish business relationship with customers from Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you need tunnel mucking machine (tunnel excavation loader, tunneling haggloader), please don't hesitate to contact us.
