Mucking Belt Conveyor
Home » Products » Mining Haulage Equipment » Mucking Belt Conveyor
Related Products:
  • Bridge Conveyor
  • Bridge ConveyorDescription of Bridge Conveyor: Siton machinery manufacturing Co., Ltd., is a professional bridge conveyor manufacturer in China. The bridge conveyor is a kind of typical mucking conveyor used in coal mining industry. And it is described as a short conveyor hung from the boom of a mining or loading machine, with the other end attached to a receiving bin that dollies along a frame supported by the room or entry conveyor tailpiece.
  • Triangle Belt Conveyor
  • Triangle Belt ConveyorDescription of Triangle Belt Conveyor: The triangle belt conveyor is a kind of mucking conveyor used to continuously transfer materials. Working under the effect of frictional force, it is not only the components to transfer the material, but also the components to transfer the force.
  • Mobile Belt Conveyor
  • Mobile Belt ConveyorIntroduction of Mobile Belt Conveyor: The mobile belt conveyor is very useful and economical transferring set in the uninterrupted production line, it is adaptable to both stationary and mobile crusher plants. The belt conveyor's transfer capacity is high and transfer distance is long. It is a very important component of stone production line and the mobile crusher plants.

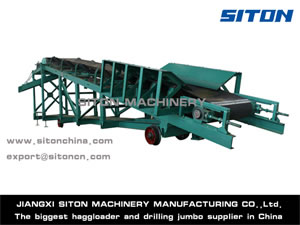

Mucking Belt Conveyor:

The mucking belt conveyor is a type of muck conveyor mainly used in rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering/projects, and national defense caves.

We provide clients worldwide with three types of mucking belt conveyors: bridge conveyor, triangle belt conveyor and mobile belt conveying machine. The mucking belt conveyor is particularly designed for various slag tapping schemes. It can be used in different kinds of slag tapping schemes to improve the efficiency of the completing set of slag tapping.

Technical Parameters:
Item Model Parameters DZQ 80/ 35/ 18.5 DZQ 80/ 35/ 15 DZQ 80/ 35/ 11 DZQ 65/ 25/ 15 DZQ 65/ 25/ 11 DZQ 65/ 25/ 7.5
Conveyor data Overall length (m) 35 32 24 35 32 24
Overall width (m) 1.786 1.786
Overall height (m) 1.88 1.88
Weight 8575 8175 7375 8170 7770 6970
Weight delivered (t/h) 350 250
Electric roller Voltage (V) 1140/ 660/ 380
Power (KW) 18.5 15 11 15 11 7.5
Diameter (mm) 500 500
Pilot roller Diameter (mm) 270 270
Toughed roller Diameter (mm) 108
Roller length (mm) 280 220
Roller underneath Diameter (mm) 89
Roller length (mm) 920 730
Fabric heavy-duty antifoaming conveyor Model 800S 800S
Width of conveyor belt (mm) 800 650
Pulling strength (N/mm) 800 800

Note: The above parameters are only for reference. They can be different from the actual parameters.

Unit parameters Item Unit parameters
Throughput t/h 300 Conveyor PVC Fabric heavy-duty antifoaming conveyor
Conveyor Length m 8 Belt strength N/mm 680S
Hoisting height m 1.7 Unit length of belt m 18
Tape speed m/s 1.6 Diameter of driving pulley mm φ500
Main electric motor Model YDB11- 1.6- 500- 800 Diameter of return pulley mm φ250
Power kw 11 Idler roller diameter mm φ108
Tape specifications mm B=800mm On the distance between rollers mm 2000
The distance between rollers underneath mm 1200

Note: The above parameters are only for reference. They may be different from the actual parameters.

Company Introduction:

Founded in 1992, Siton machinery manufacturing Co., Ltd is a professional manufacturer of mucking belt conveyor in China. We have obtained the security certificate and the patent certificate of national grade. Possessing more than 60% market share, we established business relationship with customers from Canada, India, Kazakhstan, Vietnam, Morocco, etc.For more information about this mucking belt conveyor, please contact us.
