XTUT-12 Underground Truck
Home » Products » Underground Truck » XTUT-12 Underground Truck

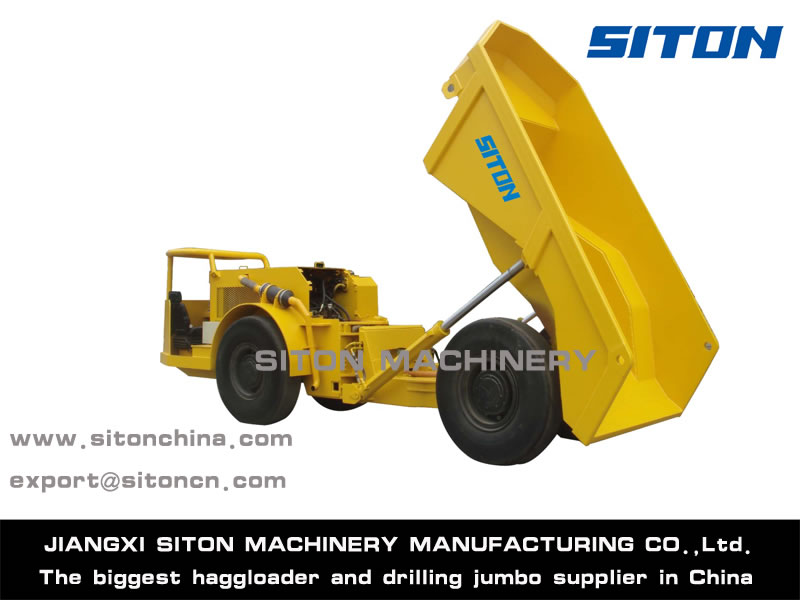

XTUT-12 Underground Truck

Siton is a professional manufacturer and supplier of XTUT-12 Underground Truck in China. In addition to this model of mine transporter articulated dump truck, the other models of this diesel underground dump truck include UK-4, UK-6, UK-10, etc. we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, etc. These products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.

Specification of XTUT-12 Underground Truck:

Item

Unit

XTUT-12

Rated Load Capacity

T

12

Bucket Capacity

M3

6

Ground Clearance

mm

265

Turning Angle

(° )

40

Diesel Output

Kw/rpm

130/2300

Fuel Tank Capacity

L

180

Converter

DANA

Gearbox

DANA

Axles

DANA

Braking System

Multi Disc Wet

Departure Angle

(° )

15

Rear axle swing angle

(° )

±8

Climbing Capacity

%

25

Item

Unit

XTUT-12

Tyres Size

14× R24

Discharge Angle

(° )

70

Hydraulic oil tank

L

340

Driving speeds

1st Gear

Kw/h

3.5

2nd Gear

Kw/h

7

3rd Gear

Kw/h

13

4th Gear

Kw/h

23

Turning Radius

Inner

mm

4900

Outer

mm

7400

Dimensions

Length

mm

8000

Width

mm

1960

Height

mm

2360

Weight

Kg

12300

Driving Cab

Closed
