DL5A Production Drilling Rig
Features of DL5A Production Drilling Rig:
DL5A is a compact and flexible fully hydraulic mini deep-hole production drilling rig, which is mainly used for deep-hole rock drilling in mining, small tunnels and underground works.

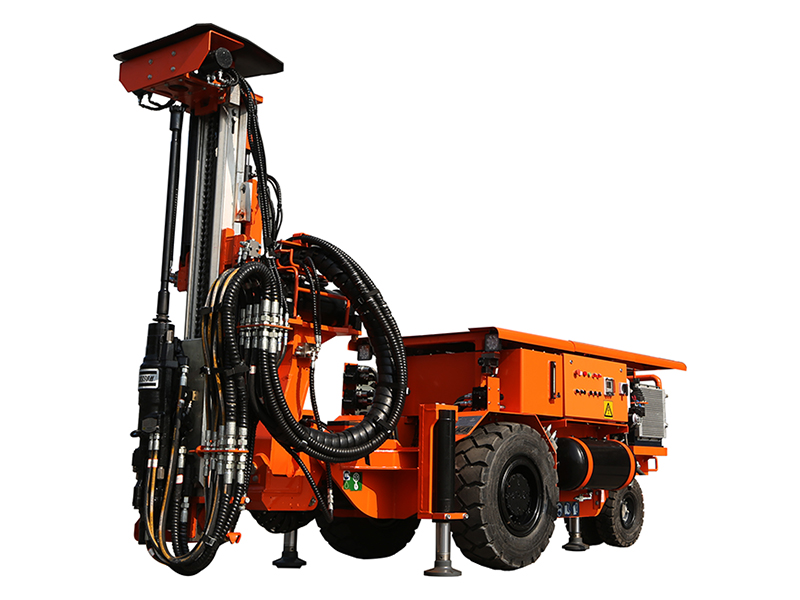

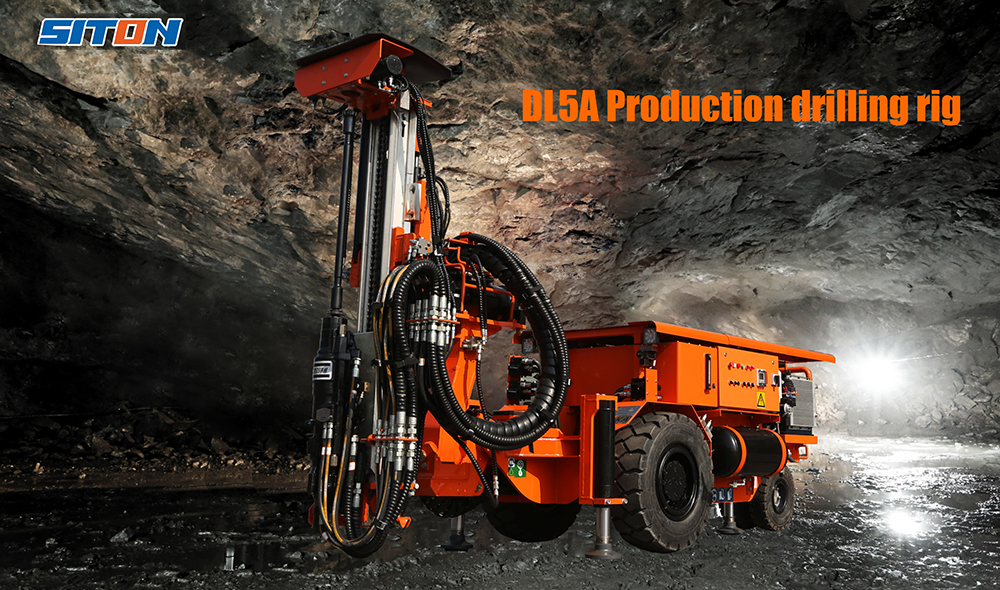

Product Show:
Parameters of DL5A Production Drilling Rig:
| Item | DL5A | |

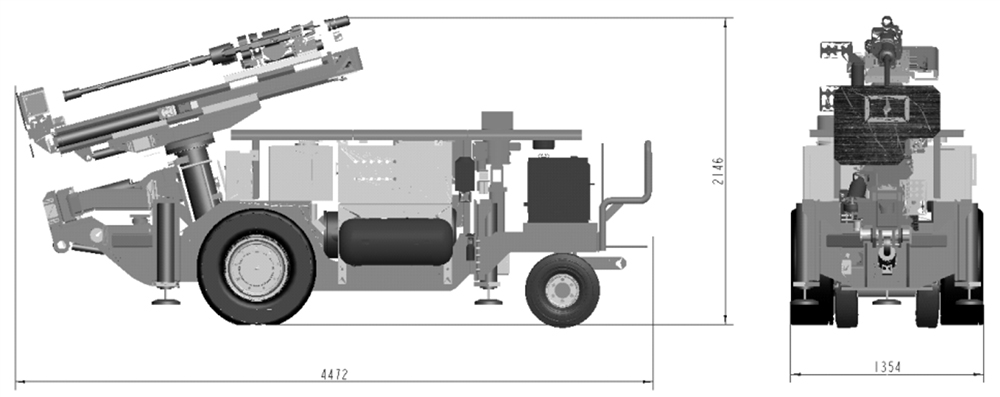

| Complete machine | Overall Dimension (L*W*H) mm | 4472*2146*1354 |
| Coverage Area (W*H) m | 2.8*2.8-3.5*3.5 | |
| Hole Diameter mm | φ64/76 | |
| Drill Steel Length mm | 915 | |
| Hole Depth m | 25 | |
| Drill Speed m/min | 0.5-2 | |
| Main Motors kW | 55 | |
| Total Weight kg | 4700 | |

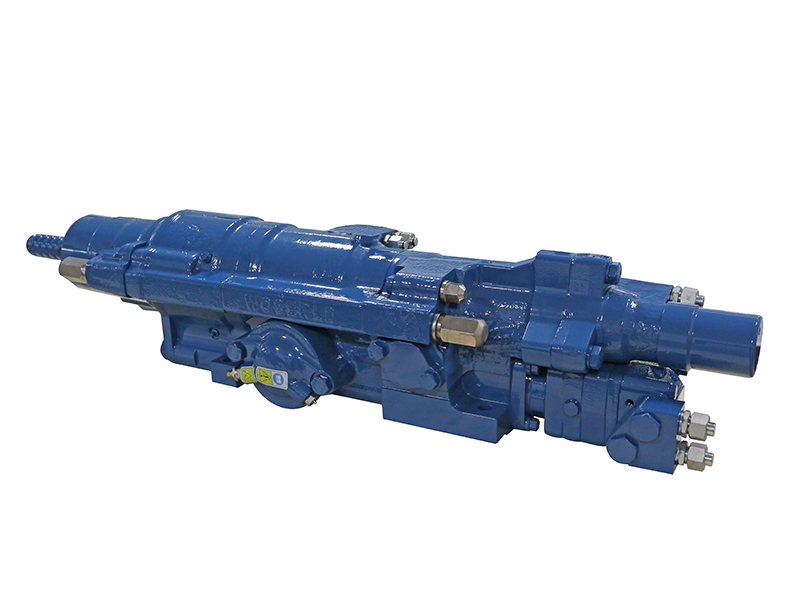

| Boom | Rock Drill WOSERLD | 1838ME |
| Feed Roll-over | 360° | |
| compensation mm | 480 | |
| Air system | Max Displacement m³/m | 0.2 |
| Air Pressure Gauge Mpa | 0.2 | |
| Water system | Max Capacity L/min | 67 |
| Water Pressure Gauge Mpa | 3 | |
| Electric system | Total Installed Power KW | 54.5 |
| Voltage | 380V |
