LW-150 Excavating Loader
Home » Products » Mucking Loader » Track Mucking Loader » LW-150 Excavating Loader

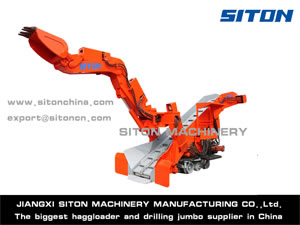

LW-150 Excavating Loader
Range Of Application:

The mucking loader is mainly used in coal mines, metal mines, hydropower tunnels and other underground projects. The company has developed different kinds of loaders many times and updated them to adapt to different working conditions including section from 2.0 x 2.0 m to 9 x 9 m (Height x Width), slope within 33°.

Main Characteristics of LW-120 Track Mucking Loader:

1. The mucking loader adopts Electrohydraulic control system with reduced-voltage start Suitable for long tunnel projects.

2. Main movements controlled by pilot valves, Easily operated and stable.

3. 30% of the configurations are imported. Oil will be Multistep filtered. With air cooling radiator.

4. Load rocks completely without labor work.

5. Convey rocks with chain -scraper, stable and high efficiency.

6. Semi-enclosed assembling,easy to maintain.

Technical Parameters:
Model Unit LW- 150/45G
Weight Kg 13600
Loading ability 150
Digging width mm 5800
Digging distance (from Dozer Blade) mm 2550
Digging height mm 3100
Digging depth mm 650
Dumping height mm 1586-2000 (Variable)
dumping distance mm 2200 (Variable)
Traveling speed m/min 0.89±5%
Scraper chain Speed m/min 39
Scraper chain   Single chain single motor
Min.turning radius m ≥12
Max.work pressure Mpa ≤20
Clearance from track mm ≥27
Whole power KW 55/45
Distance between bearings mm 1111
Track gauge mm 600/762/900
Max.material size (Depth* Height) mm 880×730
Max.boom angle (°) ±55
Dimensions during transport Length mm 7200
Width mm 1790
Height mm 2430
Dimensions during operating Length mm 9100
Width mm 2515
Height mm 2550
Adaptive tunnel dimension (Width× Height) m ≥3×3

FAQ:

1. Will necessary spare parts be offered in time?

Normally we suggest customers to buy spare parts for at least 2 years of operation once they buy a new equipment. We will also deliver enough spare parts to our distributor in some countries.

2. How to solve the unusual faults during operation?

SITON will give prompt reply on how to repair the equipments within 24 hours once we receive the fault report. We can also send engineers to the site if necessary.

3. Does SITON offer training for operating and maintenance?

Customers can send their engineers to SITON for one week training and necessary accommodation will be offered free of charge. We will send engineers to the site for technical support if customers requires.
