WJ-1.5C Diesel LHD Loader
Home » Products » LHD Loader » Diesel LHD Loader » WJ-1.5C Diesel LHD Loader

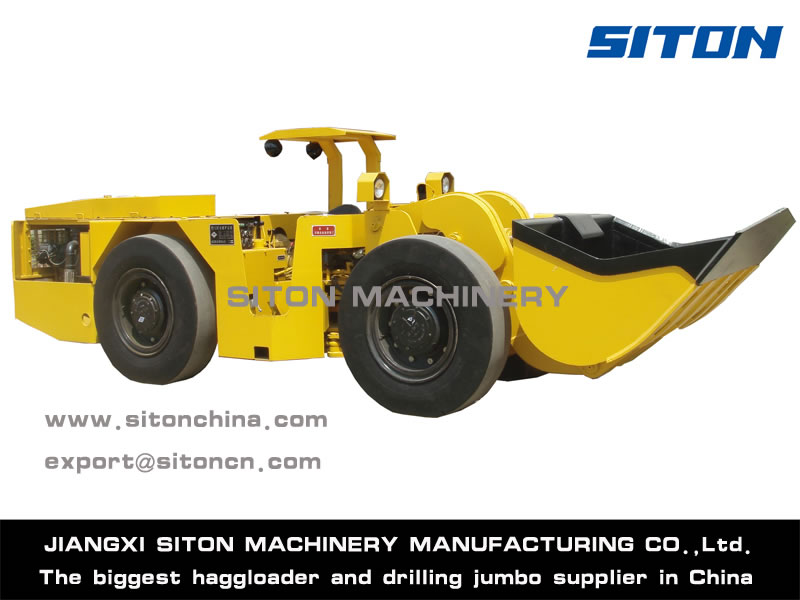

WJ-1.5C Diesel LHD Loader
Specification of WJ-1.5C Diesel LHD Loader:
Model of Diesel LHD Loader WJ- 1.5C
Rated Loading Volume (m3) 1.5
Rated Loading Capacity (kg) 3000
Max. Traction Force (Kn) 80
Max. Shovel Force (Kn) 81
Traveling Speed (km/h) Position I Forward/ Backward 0-3.2
Position II Forward/ Backward 0-6.5
Position III Forward/ Backward 0-14
Min. Turning radius (mm) Inner 2890
Outer 5000
Max. Discharge Height (mm) 1350
Max. Discharge Distance (mm) 1025
Angle of Discharge 45°
Ground Clearance (mm) 240
Climbing Ability 14°
Engine Brand of Diesel LHD Loader Deutz
Engine Type Diesel
Engine Power (KW/rpm) 63/2300
Operation Mass (kg) 10500
Overall Dimension of Diesel LHD Loader Length (mm) 6820
Width (mm) 1700
Height (mm) 2100

Siton is a professional manufacturer and supplier of WJ-1.5C diesel LHD loader in China. In addition to this underground LHD mining loader, we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, Underground Truck, etc. Our products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.
