Underground Truck
Product Introduction of Underground Truck XTUT-20:
XTUT-20 is a compact underground mining dump truck with a carrying capacity of 20 tons. It is equipped with a central articulated swing device and can be applied to 3 × 3 meters underground mine gallery transportation. The new design of XTUT-20 not only improves production efficiency, but also improves safety, maintainability and operational comfort in underground transportation, mining and construction operations.
Specifications of Underground Truck XTUT-20:
Item | Date |
|
Complete machine | Overall Dimension (L*W*H) | 9098×2280×2447 mm |
Tramming capacity (payload) | 20000 kg |
|
Max. Tractive force | 218kN |
|
Standard bucket’s volume | 10m³ |
|
Travel speed | 1gear | 4.5km/h |
2gear | 6km/h |
|
3gear | 16km/h |
|
4gear | 25km/h |
|
Weight | Operating weight | 22600 kg |
Loaded weight | 39600 kg |
|
Tire | Model | 18.00-25 |
Brand | China Top brand |
|
Hydraulic system | The brakes when the cab door is unlocked | Standard |
Working hydraulic tank volume | 370 L |
|
Electric system | Generator | 28 V, 80A |
Battery | 2×12 V, 150Ah |
|
Starter | 24V/5.5kW |
|
Power train | Diesel engine | VOLVO TAD853VE |
Rated power | 235 kW @2200rpm |
|
MAX torque | 1310Nm @ 1450rpm |
|
Number of cylinders | Straight 6 cylinder |
|
Displacement | 7.7 L |
|
Cooling system | Liquid cooled |
|
Combustion principle | 4-stroke direct injection engine, turbocharge and inter-cooler |

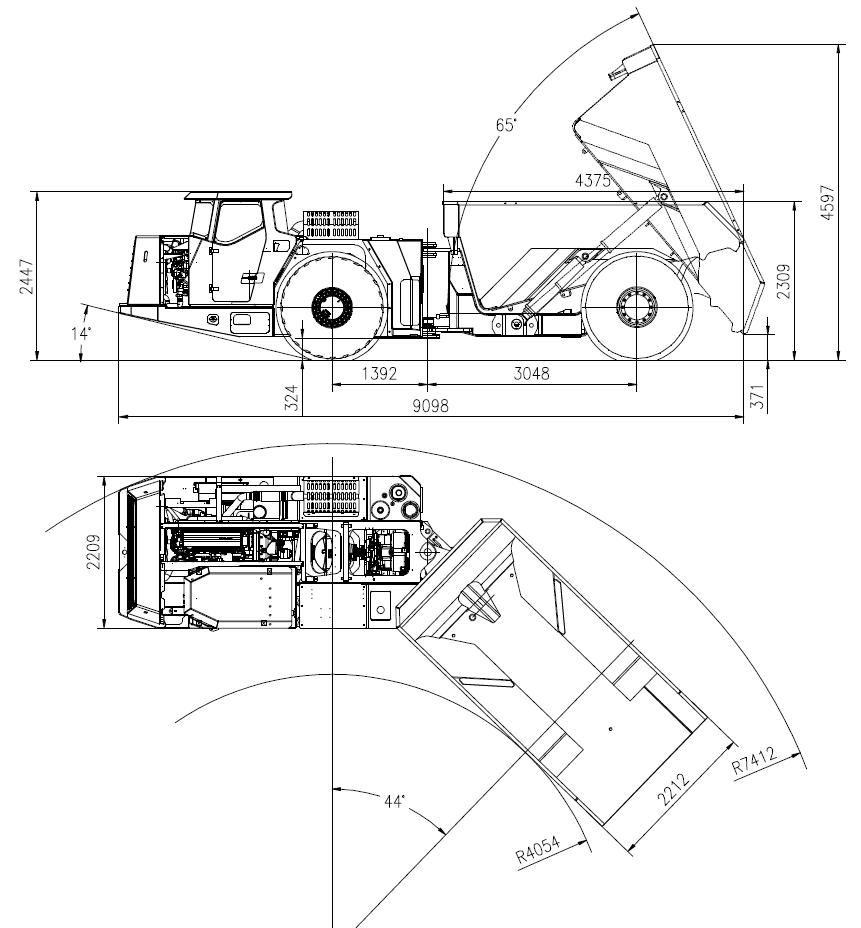

Drawing:

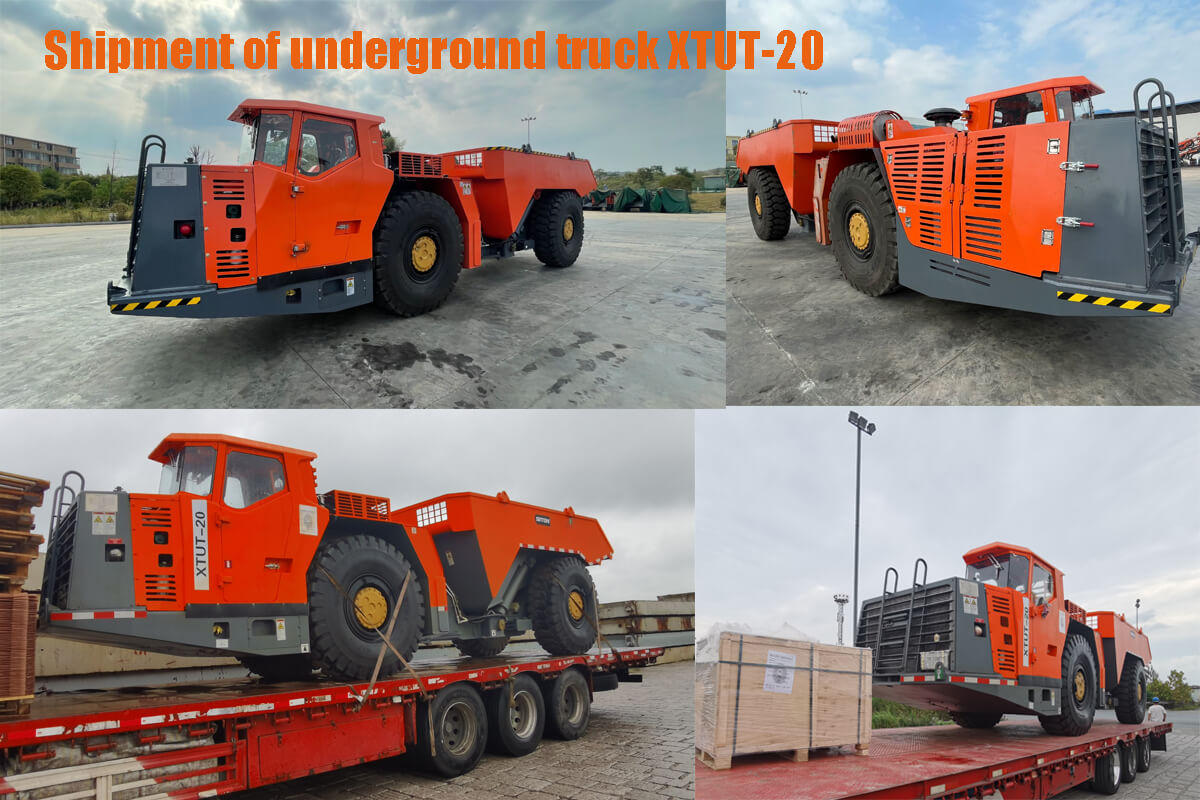

Product Show:
Machines for underground mining project:
Machines for tunnel project:
