Trolley Locomotive
Home » Products » Mining Locomotive » Trolley Locomotive

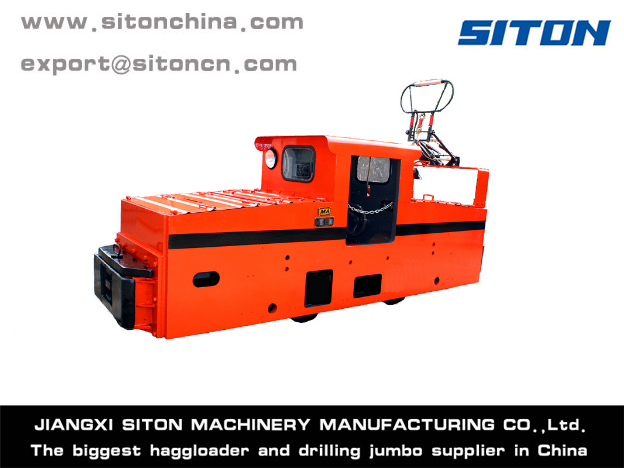

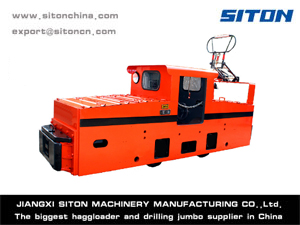

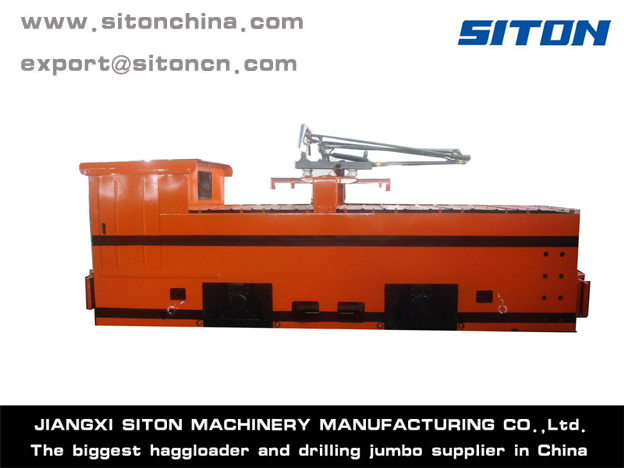

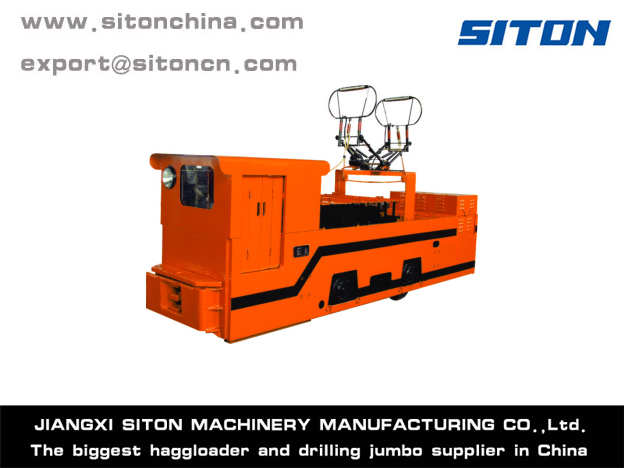

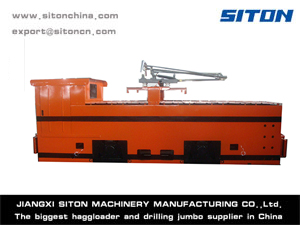

Trolley Locomotive
  • Trolley Locomotive
  • Trolley Locomotive
  • Trolley Locomotive
Trolley Locomotive:

No.

Item

Unit

CJY 1.5

CJY 2

CJY 2.5

CJY 3

CJY 6

CJY 7

CJY 10

CJY 14

CJY 20

CJY 30

1

Adhesive weight

T

1.5

2

2.5

3

6

7

10

14

20

30

2

Rail Gauge

mm

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

762/ 900

3

Rated Voltage

V

100/ 250

1OO

250

250

250/ 550

250/ 550

250/ 550

550

550

550

4

Hourly speed

Km/ h

4.54/ 6.6

6.6

6.6

9.1/ 7.5

10

11

11/ 10.5

12.87

15/ 18.6

13.2

5

Hourly system traction force

KN

2.55/ 3.24

3.54

3.54

4.704/ 5.74

11.94

13.05/ 15.09

13.05/ 15.09/ 18.93

26.68

39.23

43

6

Motor power

KW

1*3.5/ 1*6.5

2*3.5

2*3.5

1*12/ 2*6.5

2*18

2*21/ 2*24

2*22/ 2*30

2*52

2*78/ 2* 85/ 2*100

2*85

7

Max .traction force

KN

3.68

4.9

6.13

7.36

14.7

17.2

24.5

34.3

49/52.9

52

8

Traction height

mm

210/ 320

210/ 320

210/ 320

210/ 320

320/  430

320/  430

320/  430

320/  430

320/  430

334

9

Current-collector height

m

1600~ 2000
/1800~ 2200

1800~ 2200

1800~ 2200

1800~ 2200

2000~ 2400

1800~ 2200

1800~ 2200/ 2000~ 2400

2000~ 3200

2000~ 3200

1900~ 3200

10

Min. turning radius

m

5

5

5

5.7/6

7

7

7/10

12

12/30

22

11

Wheel-base

mm

650

650

650

816/ 850

1150

1100

1100/ 1220

1700

2500

2200

12

Wheel diameter

mm

460

460

460

650/ 520

680

680

680

760

820

820

13

Speed Controller mode

Resis-tance/ IGBT Cont-roller

IGBT Cont-roller

IGBT Cont-roller

Resis-tance /IGBT Cont-roller

Resis-tance/ IGBT Cont-roller

Resis-tance/ IGBT Cont-roller

Resis-tance/ IGBT Cont-roller

Resis-tance/ IGBT Cont-roller

Resis-tance/ IGBT Cont-roller

Resis-tance/ IGBT Contr-oller

14

Brake model

Mecha-nical

Mecha-nical

Mecha-nical

Mecha-nical

Mecha-nical

Mecha-nical

Mecha-nical

Air/ Mecha-nical

Air/ Mecha-nical

Air/ Mecha-nical
