Siton LWLX-120 Mucking Loader
Siton LWLX-120 Mucking Loader

Mid-sized Crawler Mucking Loader Series

For Big Slope ≤32°

Main Overall Dimensions:
Item LWLX- 120/55L
Crawler contacting ground length 2560mm
Crawler inner width 1000mm (Variable)
Crawler plate width 500mm
Ground clearance 350mm (Variable)
Conveyor inner width 620* 720mm
Dimensions during transport Length 9200mm
Width 2100mm
Height 2350mm
Dimensions during operating Length 11080mm
Width 2100mm
Height 2813mm
Working Range:
Article LWLX- 120/55L
Digging width 5900mm
Digging distance (from dozer blade) 2470mm
Digging height 3330mm
Digging depth below ground level 800mm
Dumping height 2100mm (Variable)
Minimum dumpling height 1760mm (Variable)
Dumping distance 3170mm (Variable)
Max.boom angle ±55°
Adaptive tunnel dimension (Width× Height) ≥3.0×3.0m
Functional Parameters:
Loading ability 120m³/h
Potencia general 55kw
Weight 13600kg
Traveling speed 0.9± 1.8%m/s
Scraper chain Double chains double motors/ Single chain double motors
Adaptive tunnel slope ≤32°
Min. turing radius ≥6m
Ground pressure ≤0.1Mpa
Steering Hydraulic
Speed of scraper chain 34m/min
Volume of hydraulic tank 260L
Maximum working pressure 32Mpa
Hydraulic pump Plunger pump×2 +gear pump×2
Walking hydraulic motor Radial plunger motor ×2
Conveyor hydraulic motor Radial plunger motor ×2
Diesel engine available on request.
Siton LWLX-120 Mucking Loader Siton LWLX-120 Mucking Loader

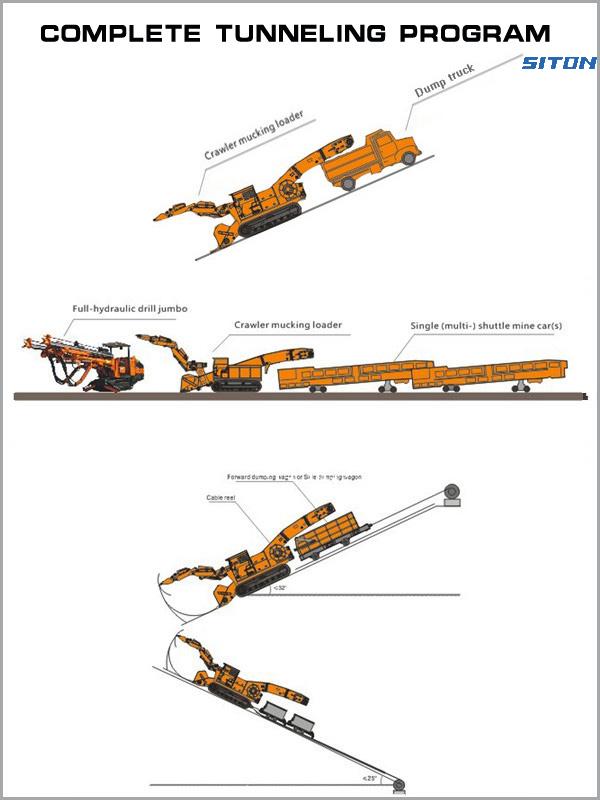

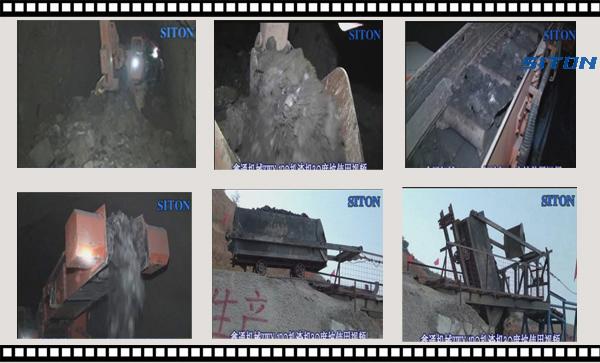

On site mucking loader with forward dumping wagon

Siton LWLX-120 Mucking Loader
