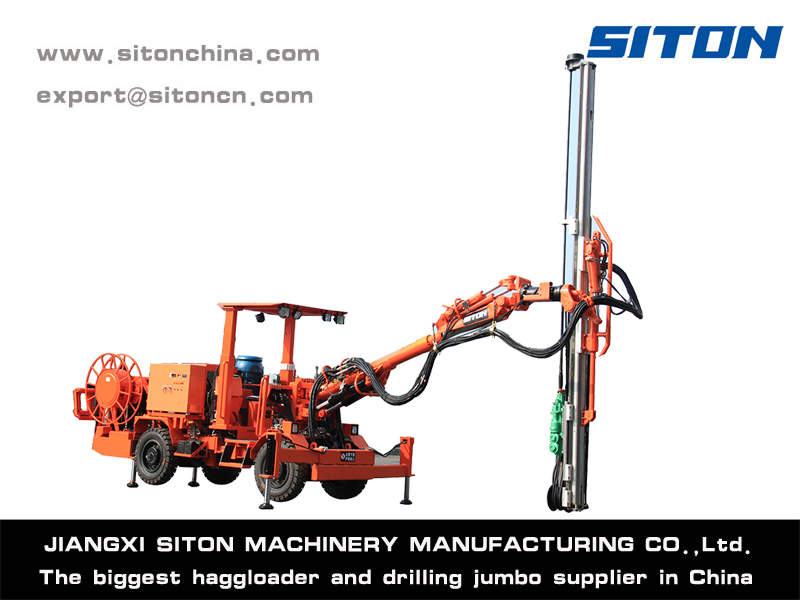

DW1-31 Wheel Drilling Jumbo
Home » Products » Drilling Jumbo » DW1-31 Wheel Drilling Jumbo

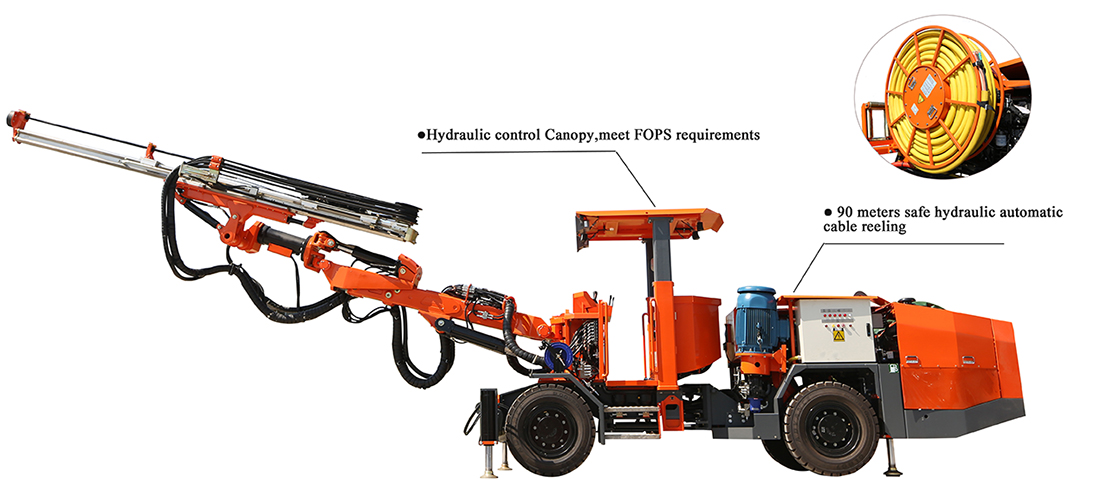

Features of DW1-31 Wheel Drilling Jumbo:

1. Hydraulic Drill Boom

1) High Efficiency: Unique translation design of drill boom improves accuracy and parallelism of borehole spacing, which achieves accurate and quick positioning.

2) Flexible Movement: Rotary motor in the front of upper arm makes the whole feed mechanism move flexibly (± 180°).

3) Heavy Duty Aluminium Alloy Propelling Beam & Stainless Steel Coating: High anti bending and twisting strength, and stainless steel coating all ensures long service life of full hydraulic drill jumbo DW1-31.

2. Rock Drill of Single Boom Jumbo

1) High Efficiency: Rock drill is Sweden brand, WOSERLD, which can be used to drill rock with high hardness. Its efficiency is two to four times of traditional handheld rock drill.

2) Long Service Life: Shank special structure is designed to eliminate reaction of the strike, which can extend service life of rock drill.

3. Hydraulic System of Wheel Drilling Jumbo

1) Multiple filtration system improves oil cleanliness and reduces failure of hydraulic system.

2) Rational pump flow and efficient water cooler ensure that the system can maintain normal oil temperature after long hours’ working.

3) Single boom drilling jumbo adopts stepwise compression technology, which optimizes the match between propelling force and impact force, and improves the positioning and drilling efficiency.

4) It is also equipped with a manual four direction control lever.

4. Chassis of Wheel Drilling Jumbo

1) Hinge jointed heavy duty Chassis, hydrostatic drive, and four wheel drive guarantee excellent power performance and fuel economy of this full hydraulic drill jumbo.

2) Key components (such as engine, drive axle, etc.) are all imported from famous supplier.

3) It has extendable and flexible front hydraulic supporting leg.

4) There are three braking conditions including running braking, parking braking and emergency braking.

5) Silencer and purifier are available to deal with tail gas.

6) Solid tyre is of filling type.

7) Driving seat is fixed.

5. Standard Configuration of Wheel Drilling Jumbo

1) Robust Housing (It can bear strong impact force of falling objects).

2) Large Power Lamp.

3) Cable Reel.

4) Air Compressor.

5) Water Pump.

6) Level Instrument.

Parameters of DW1-31 Wheel Drilling Jumbo:
Drilling Speed 0.8 to 2 (m/min)
Drill Rod Length 4305/3700 mm
Drilling Diameter Φ64 - 89 (mm)
Hole Depth 4000/3400 mm
Cross Section (W × H) ≤ 6.9 × 6.7 (m)
Traveling Speed 12 km/h
Rock Drill 1838ME/2238 (WOSERLD)

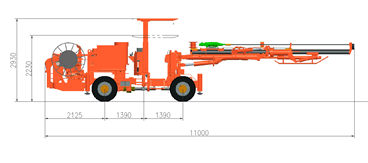

Overall Dimension (L × W × H) 12135*1750*2100/2800 (mm)
Max. Whole Weight 13200 kg

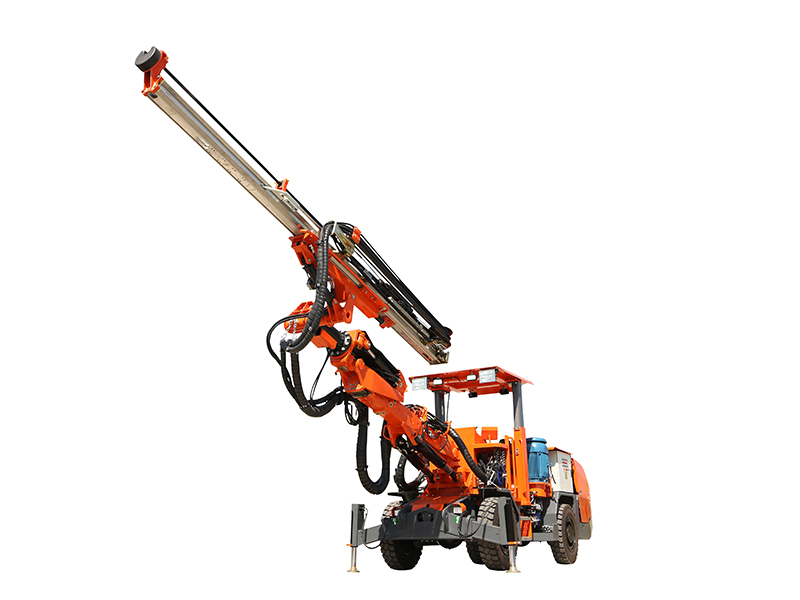

  • DW1-31 Wheel Drilling Jumbo
  • DW1-31 Wheel Drilling Jumbo
Upper Arm of DW1-31 Wheel Drilling Jumbo:
Arm Number 1
Compensation Journey 1250 mm
Boom Type Hydraulic transmission
Rotation Angle (Positive/ Negative) ± 180°
Swing Angle (Inside/ Outside) ± 35°
Rise/Fall Angle +65/-30 (º)
Pitching Angle (Impeller) +95/-3 (º)
Flexible Length 1500 mm
Electrical System of DW1-31 Wheel Drilling Jumbo:
Total Power 55+ 5.5+ 3 (kW)
Main Motor 55 kW
Voltage 380 to 660 (V)
Frequency 50 to 60 (Hz)
Hydraulic System of DW1-31 Wheel Drilling Jumbo:
Hydraulic pump (Main Motor/ Diesel Engine) One Wheel Pump and One Plunger Pump (Main Motor)
Two Wheel Pumps and One Plunger Pump (Diesel Engine)
Rated Working Pressure 23 Mpa (Drilling)/ 42Mpa (Chassis Traveling)
Oil Tank Capacity 150 L
Heat-Dissipating Method Water
Diesel Engine of DW1-31 Wheel Drilling Jumbo:
Model Cummins B3.3-80
Power 60 kw
Air Intake Method Turbo-Charge or Charge Inter-Cooling
Rated Power/Rotated Speed 80/2200 (HP/RPM)
Max. Torque/Rotated Speed 292/1600 (N·m/RPM)
Emission Standard Tier2
Weight 275 Kg
Machines for underground mining project:
DW1-31 Wheel Drilling Jumbo
Machines for tunnel project:
DW1-31 Wheel Drilling Jumbo
