LWLX-150 Multi-Functional Mucking Loader Series
LWLX-150 Multi-Functional Mucking Loader Series

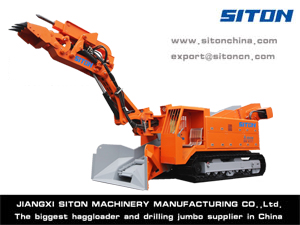

Multi-functional Mucking Loader

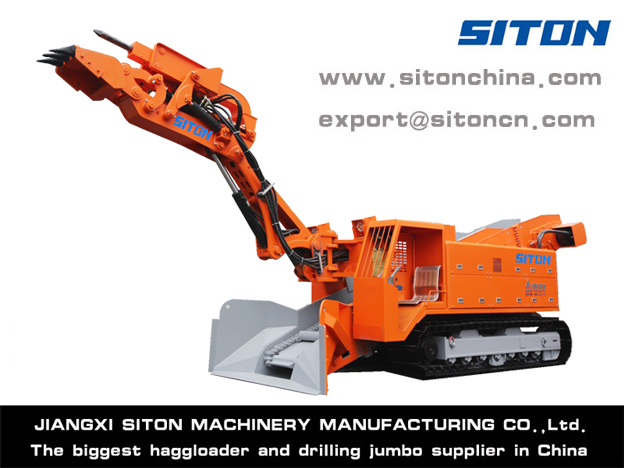

Mucking Loader with Hammer (2 arms)

Main Overall Dimension:

Item

LWLX- 150/55L

Crawler contacting ground length

2560mm

Crawler inner width

1260mm (variable )

Crawler plate width

500mm

Ground clearance

350mm (variable )

Max. rock conveying size

780X 720mm

Dimensions during transport

Length

9500mm

Width

2260mm

Height

2600mm

Dimensions during working

Length

11260mm

Width

2260mm

Height

2900mm

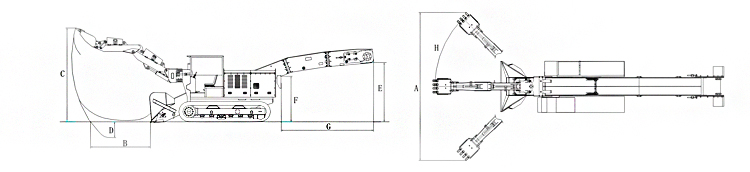

Working Range:
LWLX-150 Multi-Functional Mucking Loader Series

Item

LWLX- 150/55L

A Digging width

6400mm

B Digging distance (from dozer blade)

2720mm

C Digging height

4200mm

D Digging depth below ground level

1080mm

E Dumping height

1850mm (Variable)

F Min. dumping height

1650mm (Variable)

G Dumping distance

3000mm (Variable)

H Max. boom angle

±55°

Adaptive tunnel dimension (Widthx Height)

≥ 3.2x3.2m

Item

TT068 Broken Hammer

Weight

210kg

Working pressure

11 MPa

Attack speed

450- 750BPM

Dia.of rod

68mm

Dimensions

Length

1373mm

Width

241 mm

Functional Parameters:

Loading ability

150m3/h

Potencia general

55 kw

Weight

15800kg

Traveling speed

0.9km/h 1.8km/h

Scraper chain

Double chains double motors Single chain double motors

Adaptive tunnel slope

≤20o

Min. turning radius

≥7m

Ground pressure

≤0.1 Mpa

Steering

Hydraulic

Speed of scarper chain

39m/min

Volume of hydraulic tank

260L

Max. working pressure

32Mpa

Hydraulic pump

Plunger pumpx2 Gear pump x 1

Traveling hydraulic motor

Radial plunger motorx2

Conveyor hydraulic motor

Radial plunger motorx2
