Side Dumping Wagon
Home » Products » Mining Haulage Equipment » Mining Wagon » Side Dumping Wagon

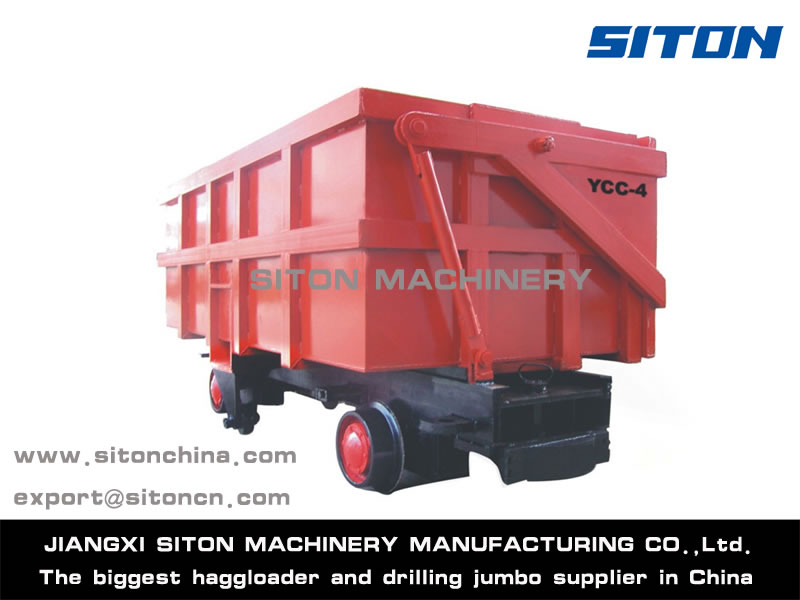

Side Dumping Wagon
Introduction of Side Dumping Wagon:

Founded in 1992, Siton machinery manufacturing Co., Ltd., is a professional side dumping wagon manufacturer in China. This side dumping wagon, also called side dump wagon, is a kind of wagon typically used in coal mining field.

During the operation of the tramcar, the side dumping wagon turns out the unloading and resets automatically by passing the dump rail. It can work efficiently with security and reliability. By drawing of engine or winch, it unloads materials automatically.

Application of Side Dumping Wagon:

The side dumping wagon or side dump wagon is applied in colliery of underground mining or earth surface mining, metal mine and other non-mining area. Along with the subsurface roadway, it can be used to transport mineral, mullock and other materials.

About Siton Machinery:

Our products include mucking loader, hydraulic crawler drilling jumbo, Shuttle Mining Car, mucking road header, track concrete mixer, belt conveyor. We have obtained the security certificate and the patent certificate of national grade. Possessing more than 60% market share, our products are well received in Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you are interested in our side dumping wagon, please contact us freely.

Technical Parameters:
Model Unit Main parameters
Volume 1.2 m³ 1.6m³ 2.5 m³ 4 m³ 6 m³ 8 m³
Loading ability T 3 4 6.25 10 15 20
Track gauge mm 600 600 600/ 762 600/ 762/ 900 762/ 900 762/ 900
Wheel base mm 600 800 1300 2000 2000 2600
Wheel diameter mm 300 350 350 350 350 350
Coupling form   Bolt chain ring Bolt chain ring Bolt chain ring Bolt chain ring Automatic hook bolt chain ring Automatic hook bolt chain ring
Traction height mm 320 320 320 430 430 430
Dumping angle (°) 42 42 42 42 42 42
Overall dimensions Length mm 2100 2500 3400 3650 4850 6350
Width mm 1050 1200 1275 1500 1500 1500
Height mm 1200 1300 1287 1586 1586 1634
Dead Weight Kg 1000 1663 1900 3206 3670 5093
Tractor speed km/h 12 12 12 8 8 8
Tunning radius m 8 10 12 15 15 16
