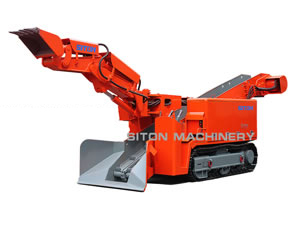

Main Overall Dimension | LWL- 60/ 30L | |
Crawler contacting ground length | 1850 mm | |
Crawler inner width | 900 mm (Variable) | |
Crawler plate width | 300/ 400 mm | |
Ground clearance | 320 mm (Variable) | |
Conveyor inner width | 488 mm | |
Dimensions during transport | Length | 6750 mm |
Width | 1490 mm | |
Height | 1650 mm | |
Dimensions during operating | Length | 7300 mm |
Width | 1490 mm | |
Height | 1750 mm |
Item | LWL- 60/ 30L | |
A | Digging width | 3070 mm |
B | Digging distance (from dozer blade) | 1530 mm |
C | Digging height | 2300 mm |
D | Digging depth below ground level | 500 mm |
E | Dumping height | 1400 mm (Variable) |
F | Minimum dumping height | 1350 mm (Variable) |
G | Dumping distance | 1600 mm (Variable) |
H | Max. boom angle | ±35° |
Adaptive tunnel dimension (Width × Height) | ≥2×2 m |
Functional Parameters | LWL- 60/ 30L |
Loading ability | 60 m3/h |
Potencia general | 30 kw |
Weight | 7200 kg |
Traveling speed | 0.2±5% m/s |
Scraper chain | Single chain single motor |
Adaptive tunnel slope | ≤32° |
Minimum turning radius | ≥4m |
Ground pressure | ≤0.1 Mpa |
Steering | Hydraulic |
Speed of scraper chain | 25m/min |
Volume of hydraulic tank | 135L |
Maximum working pressure | 22 Mpa |
Hydraulic pump | gear pump×4 |
Walking hydraulic motor | Radial plunger motor×2 |
Conveyor hydraulic motor | Radial plunger motor×1 |
On site mucking loader with dumping truck
FAQ:
1.Will necessary spare parts be offered in time?
Normally we suggest customers to buy spare parts for at least 2 years of operation once they buy a new equipment. We will also deliver enough spare parts to our distributor in some countries.
2.How to solve the unusual faults during operation?
SITON will give prompt reply on how to repair the equipments within 24 hours once we receive the fault report. We can also send engineers to the site if necessary.
3.Does SITON offer training for operating and maintenance?
Customers can send their engineers to SITON for one week training and necessary accommodation will be offered free of charge. We will send engineers to the site for technical support if customers requires.
